S4 Auxiliary Lights - Denali

The S4 is the first light Denali developed as part of the new S-Series product line. At over 3000 lumens per light and economically priced, the S4 provides more light per buck than just about anything else on the market. The new S-Series lights were specifically engineered to reduce cost without sacrificing performance, quality or durability. In fact, the S4 features the same high intensity LEDs as the D-Series lights, but utilize a single-piece optic and sealed beam construction to reduce the number of unique components. The result is a super durable high performing light that won’t break the bank.

The S4’s fixed lens features two flood optics and two spot optics to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing.

Consistent with D-Series lights, the S4 features Denali’s innovative DataDim™ Technology that enables the lights to be upgraded in seconds to dual intensity by connecting a plug-n-play DataDim™ Controller (DNL.WHS.11000) that will automatically switch the lights between half and full intensity with your vehicle’s original high beam switch.

PLEASE NOTE:

– Upgrading to dual intensity with stock LED headlight is not possible with this kit. Premium wiring harness will be needed (along with the dual intensity controller) to make dual intensity work with stock LED headlight.
– This kit comes with only one integrated switch option. If you wish to use a 3-position switch or switch eliminator plug you must upgrade to the premium wiring harness for compatibility.
– S4 LED Light Pods are available individually for those wanting to use the premium wiring harness.

Highlights

High-Intensity Series Cree LEDs outputting 6132 lumens per kit
DrySeal™ Submersible Waterproof light can withstand the most extreme environments
LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating

Product Specifications

Size: 69.85mm square x 50mm deep (each)
Power Draw: 4.6 Amps
Beam Distance: 164.6m
Beam Width: 30.5m
Raw Lumens: 6132
LED: (8x) 7 Watt Cree XPL HI

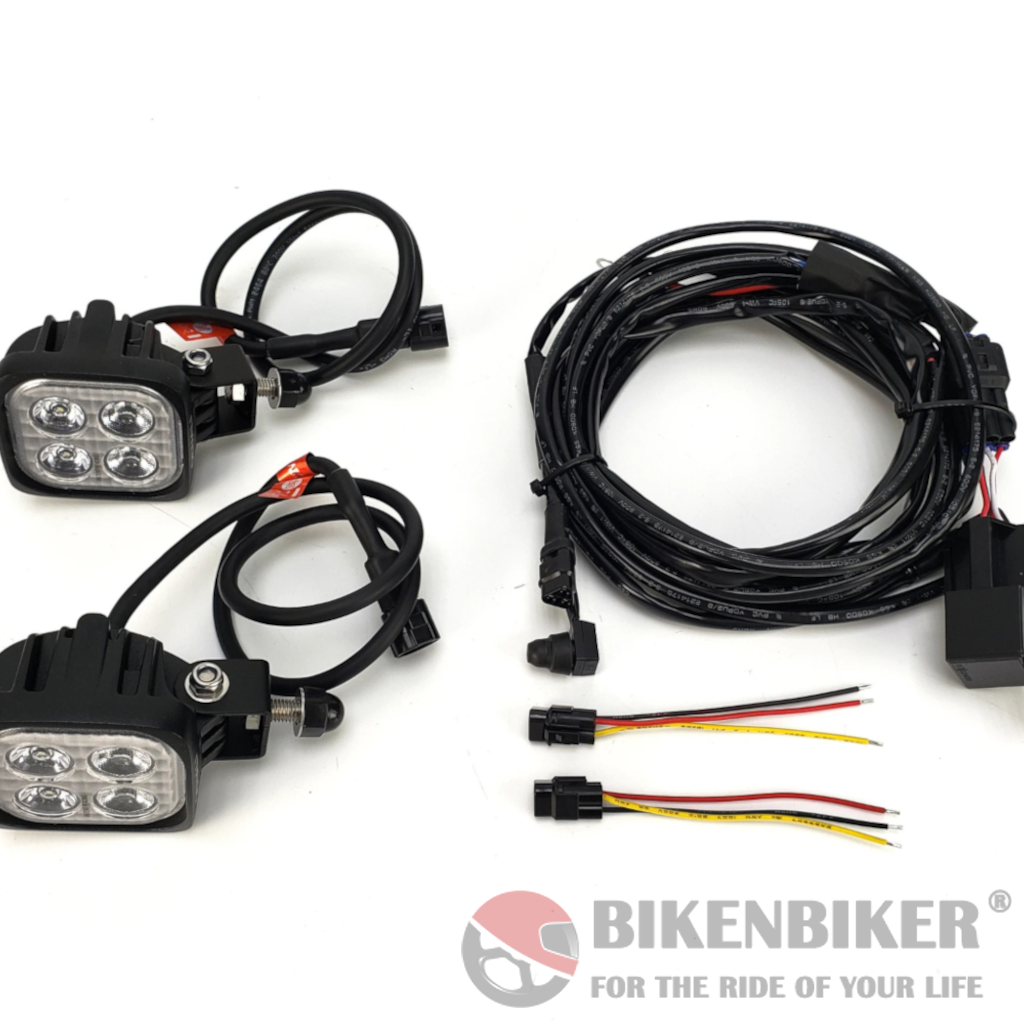

What’s in the box?

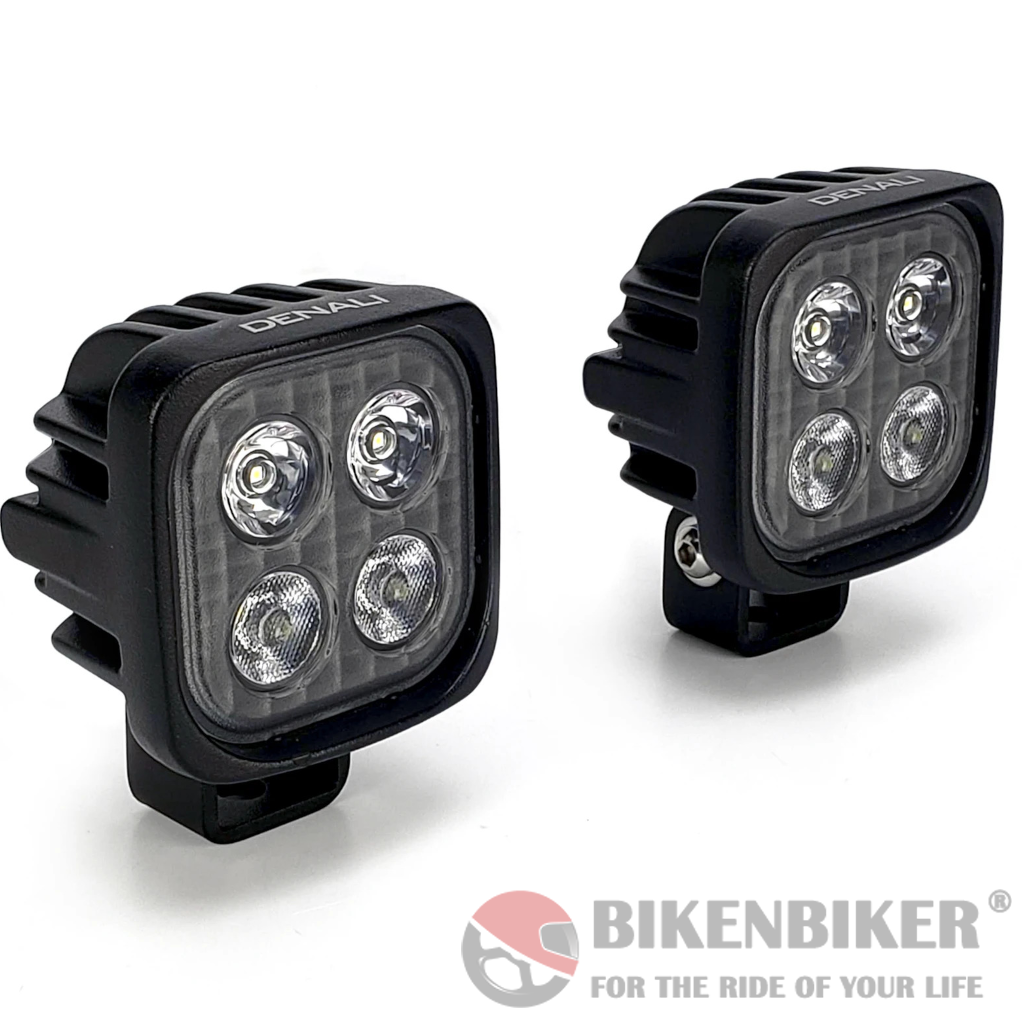

Denali S4 LED Light Pods x 2
Mounting Instructions

Brand - Denali
