Ram Mount

RAM® Mounts - Universal Laptop Tough Tray Cradle

RAM-234-3

M.R.P. Rs. 6,900.00 inclusive of all taxes
M.R.P. Rs. 6,900.00 inclusive of all taxes
Sale Contact Us to Order
Tax included.

Out of stock

View full details

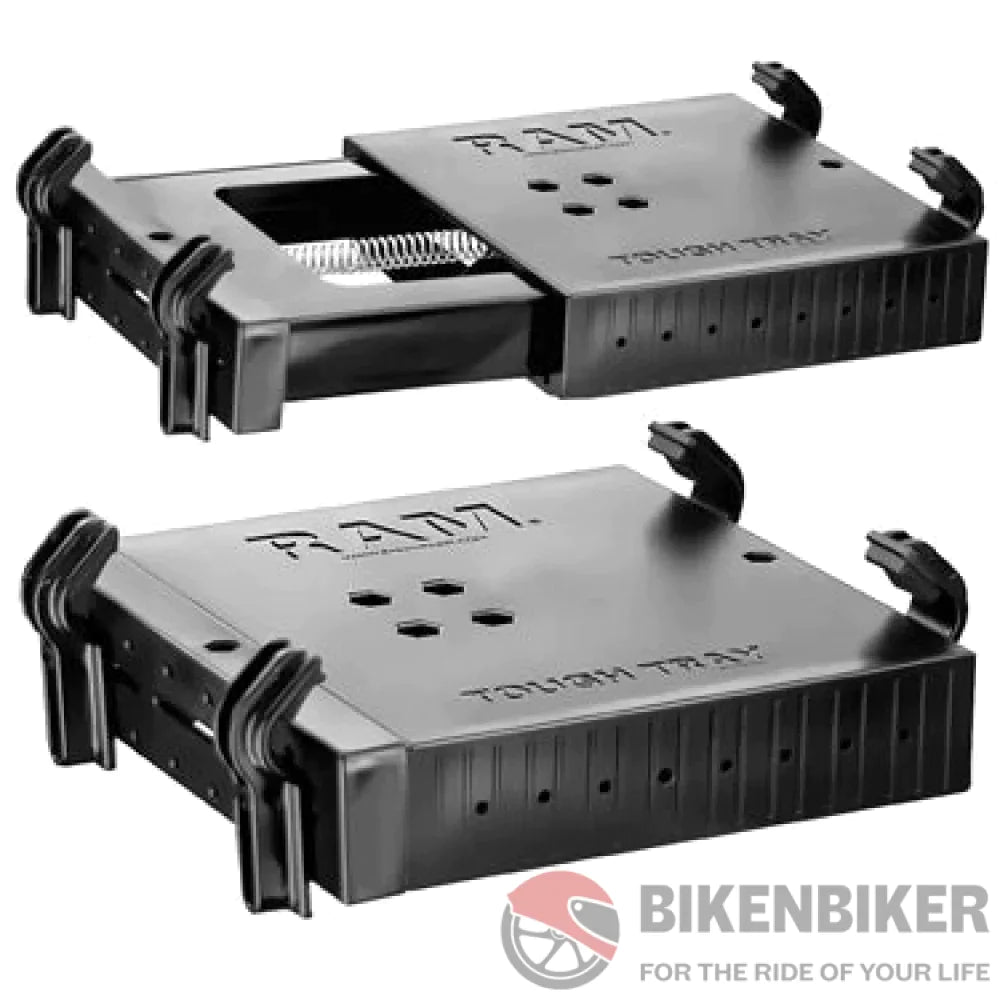

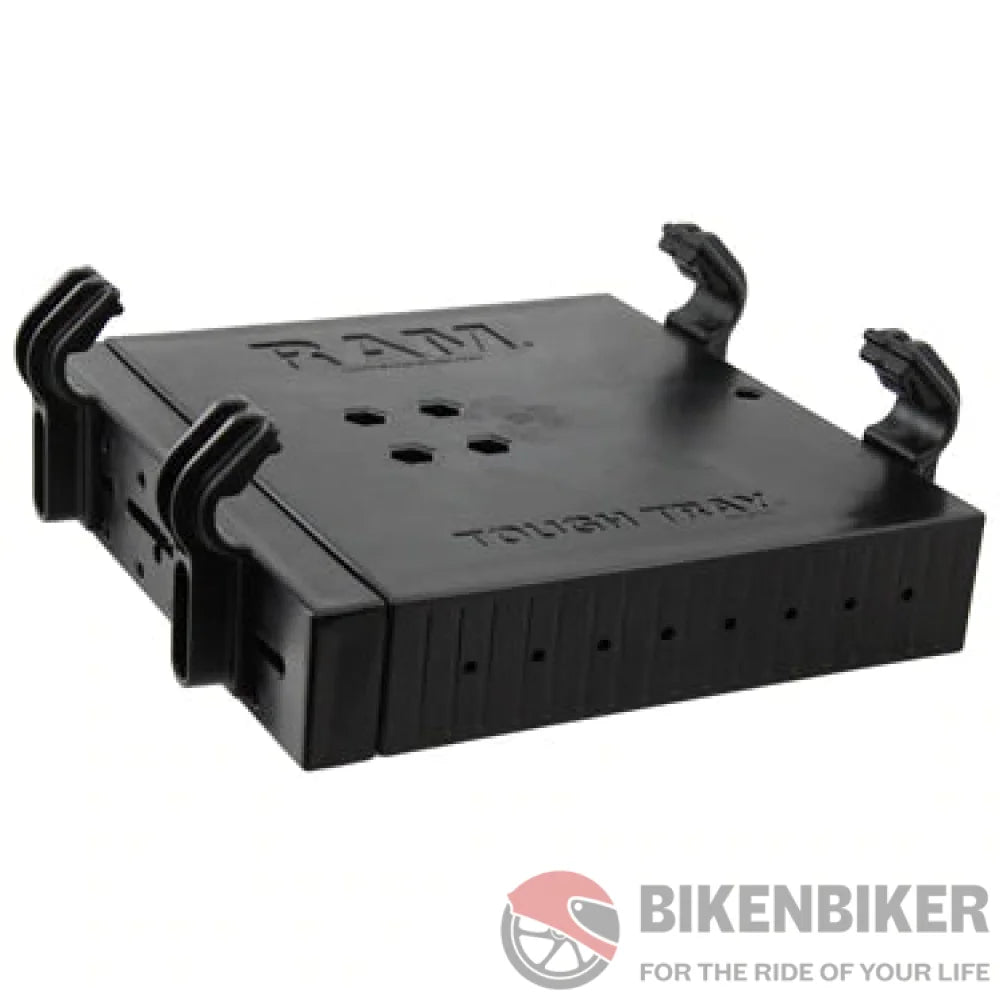

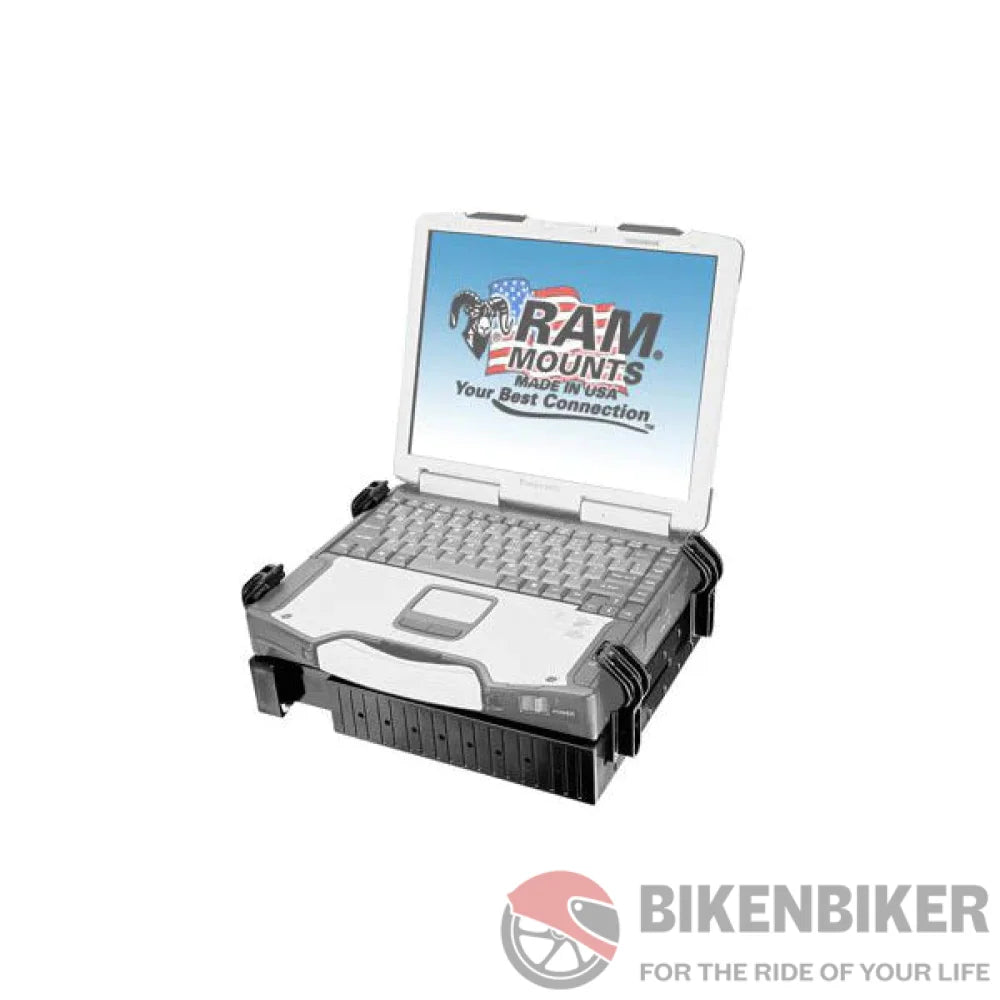

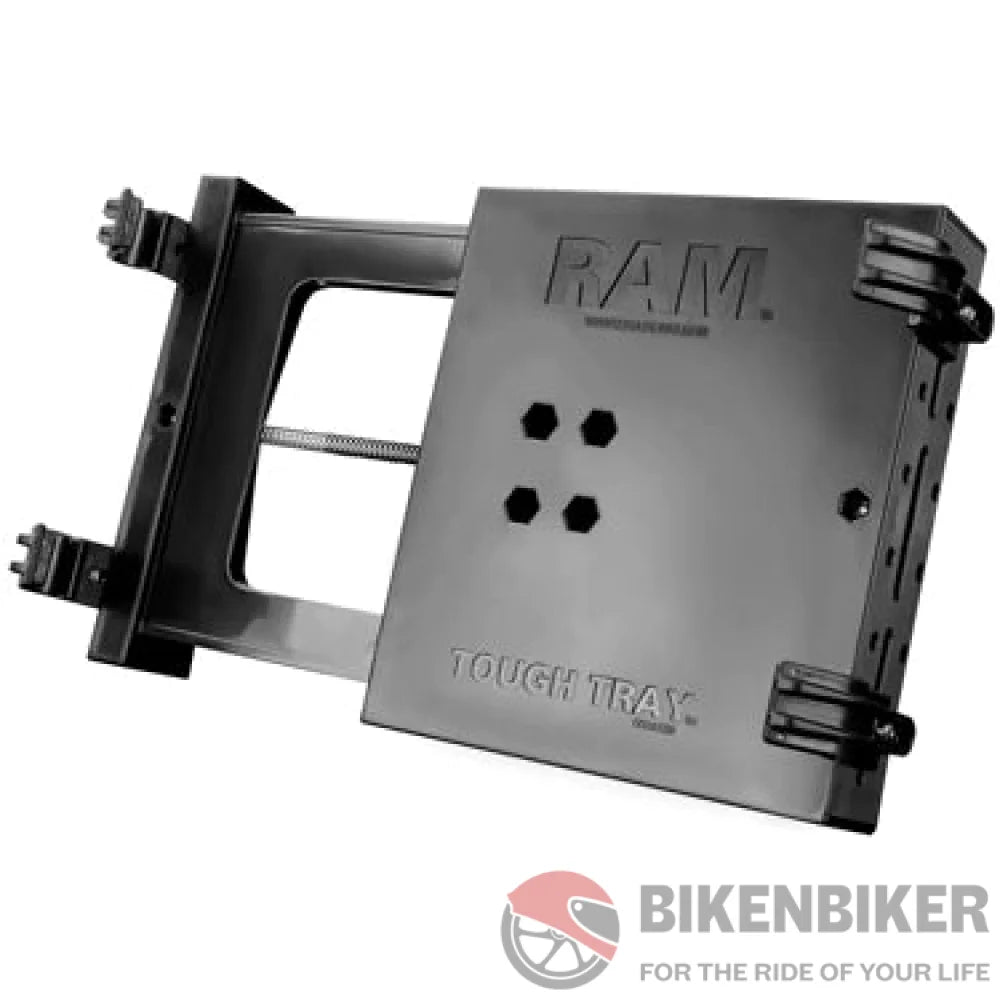

RAM Universal Laptop Tough-Tray™ Cradle

The RAM Tough-Tray™ is a spring-loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four side clamping arms with rubber grips to keep your laptop secure in any rugged environment. These arms can be moved both vertically and horizontally, allowing a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on the perimeter of the tray facilitate the mounting of additional RAM systems to support GPS, PDAs, or other electronics.

HARDWARE INCLUDED

 Tray Assembly Hardware
  • Qty (4):  #10-24 x 7/8" Machine Screws
  • Qty (4):  #10-24 Thin Nylock Nuts


Tough-Tray™ Dimensions:

  • Tray Depth: 10.0"
  • Tray Thickness: 2.125"
  • Tray Width (Expansion): 10" to 16"
  • Side Clamp Arm Height: 0.5" (min) to 1.75" (max)

HOLE PATTERN
  • 4-Hole AMPS: 1.181" x 1.496"

Material:

  • High Strength Composite

WEIGHT
  • 2.76 lbs.


Note:
Part number reflects product packaged in a clear clamshell for store shelf display. The Tough-Tray™ is compatible with laptops that have 17" screens.

Compatible Device : 10" to 16" Wide Laptops & (17" Wide Screens)



Part No. - RAM-234-3

Brand - RAM® Mounts, USA
