RAM Mounts Large X-Grip Phone Mount w/ Suction Cup

Available on Pre-order / Back Order. Check out how that works here

Now mount large phones to your vehicle’s windshield easily as well as securely.

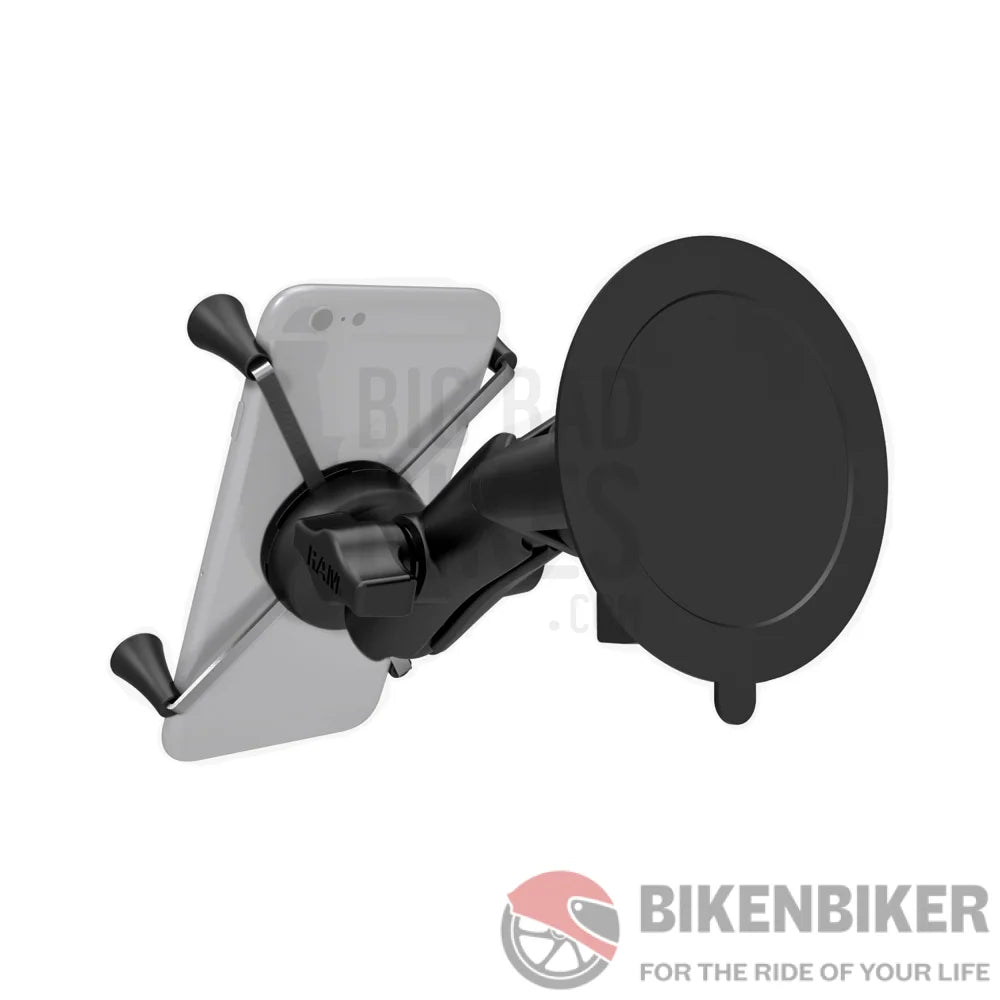

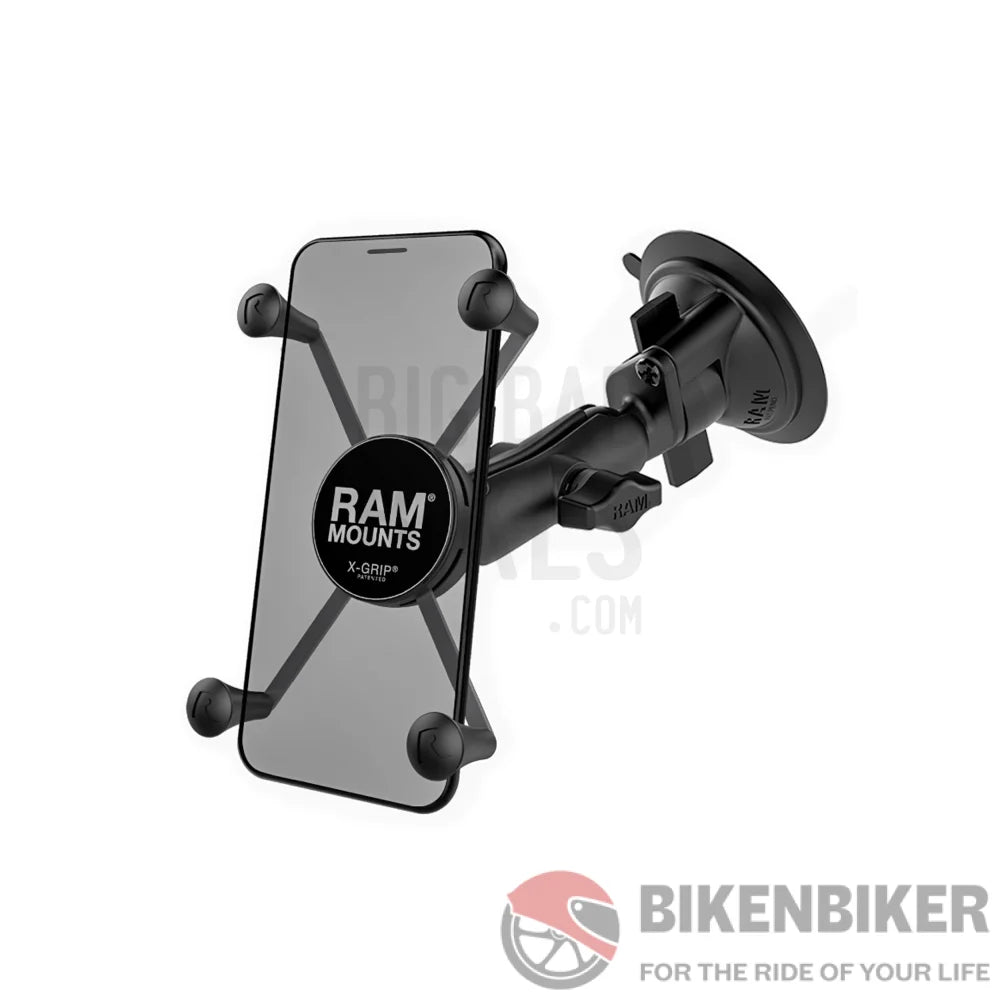

The RAM X-Grip Large Phone Mount with RAM Twist-Lock Suction Cup Base consists of a 83.82,, diameter RAM Twist-Lock suction cup base, medium length double socket arm, and the popular spring-loaded RAM X-Grip large phone holder. The RAM X-Grip features an ‘X’ design that expands and contracts to provide a perfect fit for your device – even if it’s in a case.

Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite, this large version of the RAM X-Grip fits phones ranging from 44.45mm to 114.3mm in width and keeps your device completely functional and accessible. RAM ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping.

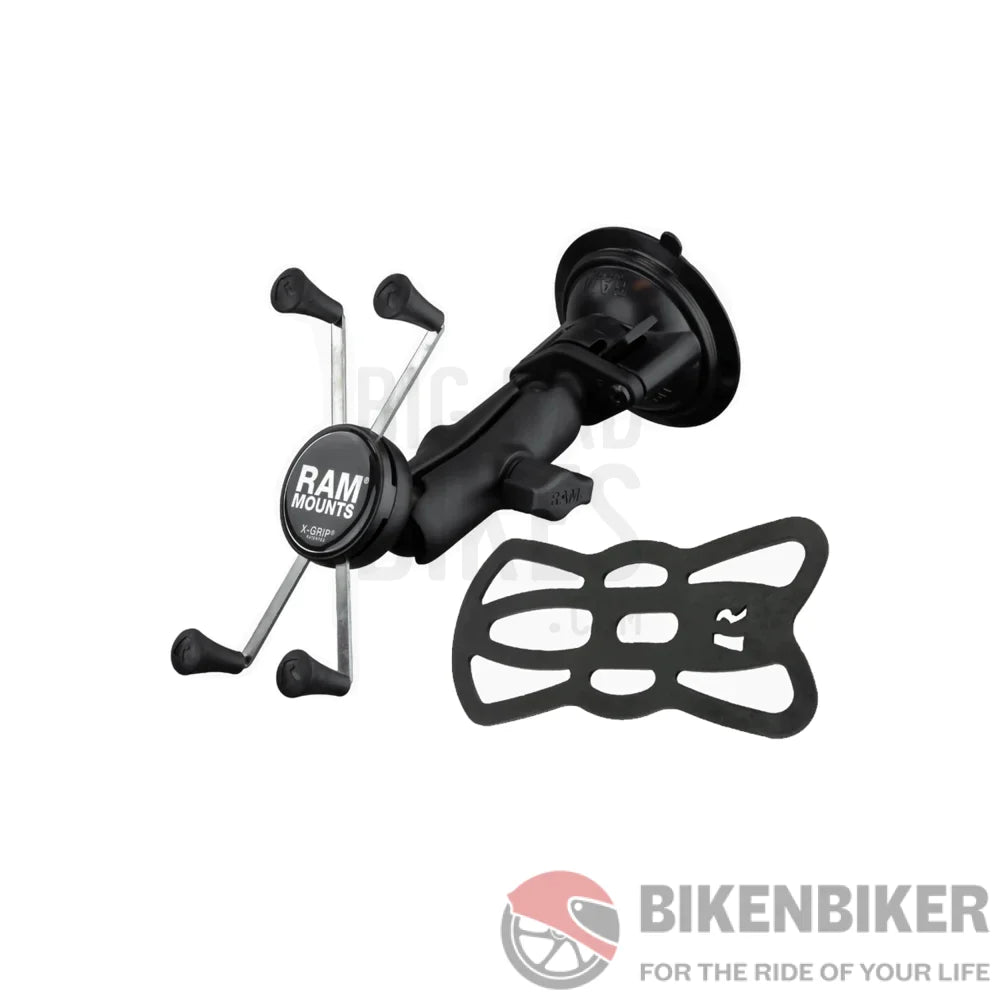

For outdoor applications, the RAM X-Grip includes a device tether that is recommended for added security and peace of mind.

The cradle is compatible with handheld devices that will fit the dimensions listed in the Product Specifications. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Highlights

Ideal for vehicle windshields
Includes RAM Twist-Lock suction cup base, medium length double socket arm, and the spring-loaded RAM X-Grip large phone holder
Spring-loaded ‘X’ design for large phones, with rubber caps sports great holding power without hiding your phone
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite
Backed by a lifetime warranty

Additional Information

RAM® Twist-Lock™ Suction Cup Mount with RAM® X-Grip® Large Phone/Phablet Holder
https://www.youtube.com/watch?v=A8F_Lk9YnL0&feature=youtu.be
Source: RAM Mounts

RAM® X-Grip® Universal Holder for Phones, Tablets & More
https://www.youtube.com/watch?v=hYpkfxI5DPQ&feature=youtu.be
Source: RAM Mounts

RAM® Mounts Twist-Lock™ Suction Cup Mount
https://www.youtube.com/watch?v=JS8EAgE9pzU&feature=youtu.be
Source: RAM Mounts

Product Specifications

Material: Marine-grade aluminum / High strength composite / Stainless steel
Surface: Powder coated
Color: Black / Silver
Holder Dimensions – Width Range: 44.45mm – 114.3mm
Holder Dimensions – Depth Range: 22.22mm max
Suction Size: 83.82mm
Socket to socket length: 76.2mm
Ball / Socket Size: B Size (25.4mm)
X-Grip – Minimum height: 82.55mm, Maximum width: 114.3mm
X-Grip – Maximum height: 139.7mm, Minimum width: 44.45mm
Weight: 0.36kgs
Maximum Load:
Standard Use: 0.90kgs
Heavy-Duty Use: 0.45kgs

What’s in the box?

RAM X-Grip Large Phone Holder with Ball x 1
RAM Double Socket Arm x 1
RAM Twist-Lock Suction Cup Base with Ball x 1
Optional Tether x 1
RAM X-Grip Rubber Cap x 4
Glue Tube for Rubber Caps x 1

Part No. - RAM-B-166-UN10U

Brand - RAM Mount, USA
