Ram Mount
RAM® Mounts Ball with 100mm VESA Plate
SKU:RAM-246U
Regular price
M.R.P. Rs. 2,400.00 inclusive of all taxes
Regular price
Sale price
M.R.P. Rs. 2,400.00 inclusive of all taxes
Unit price
/
per
Tax included.
Out of stock
Share
- Description
- Other Details
Description

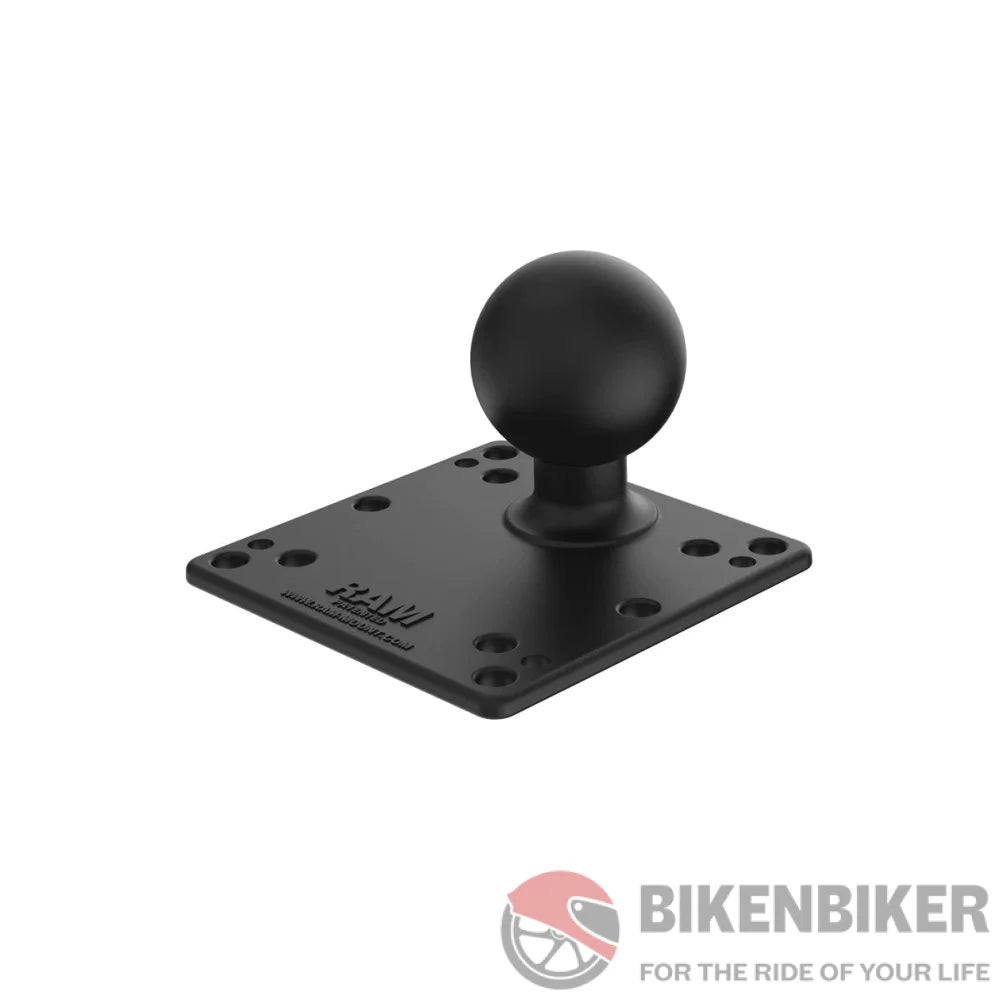

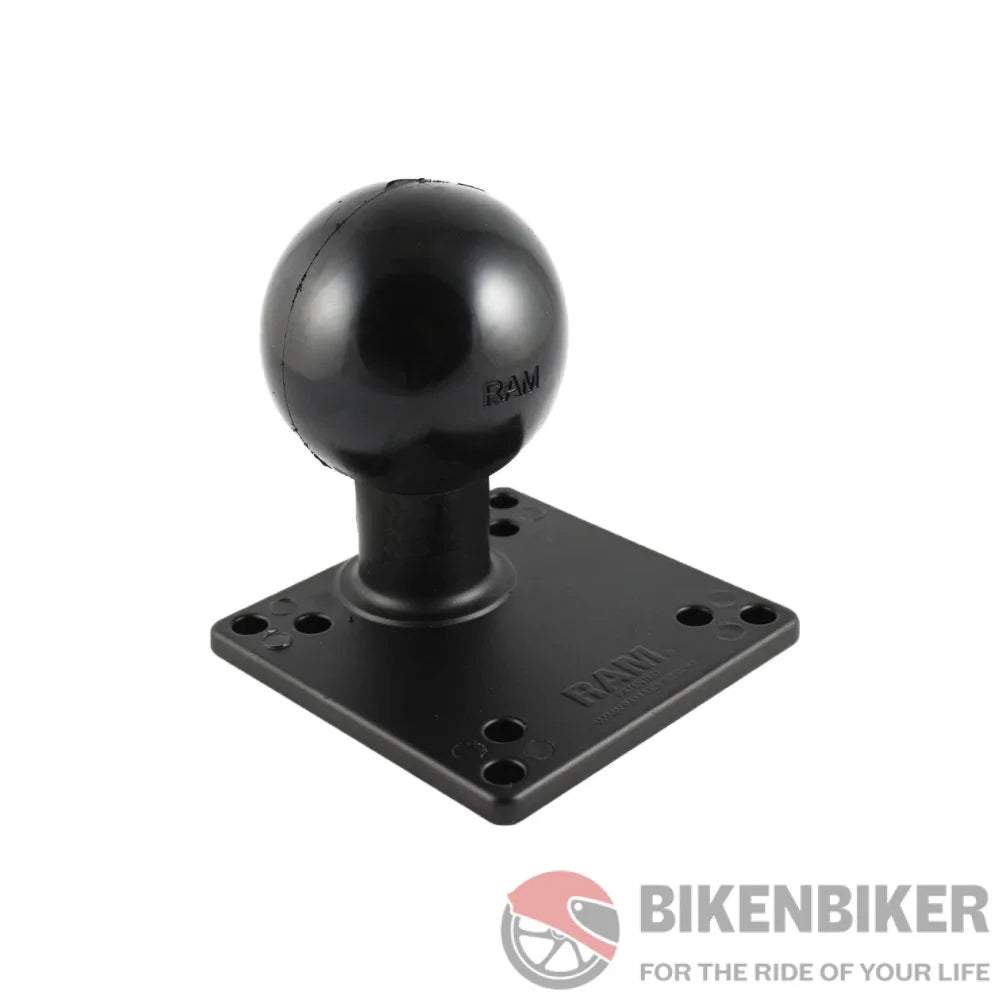

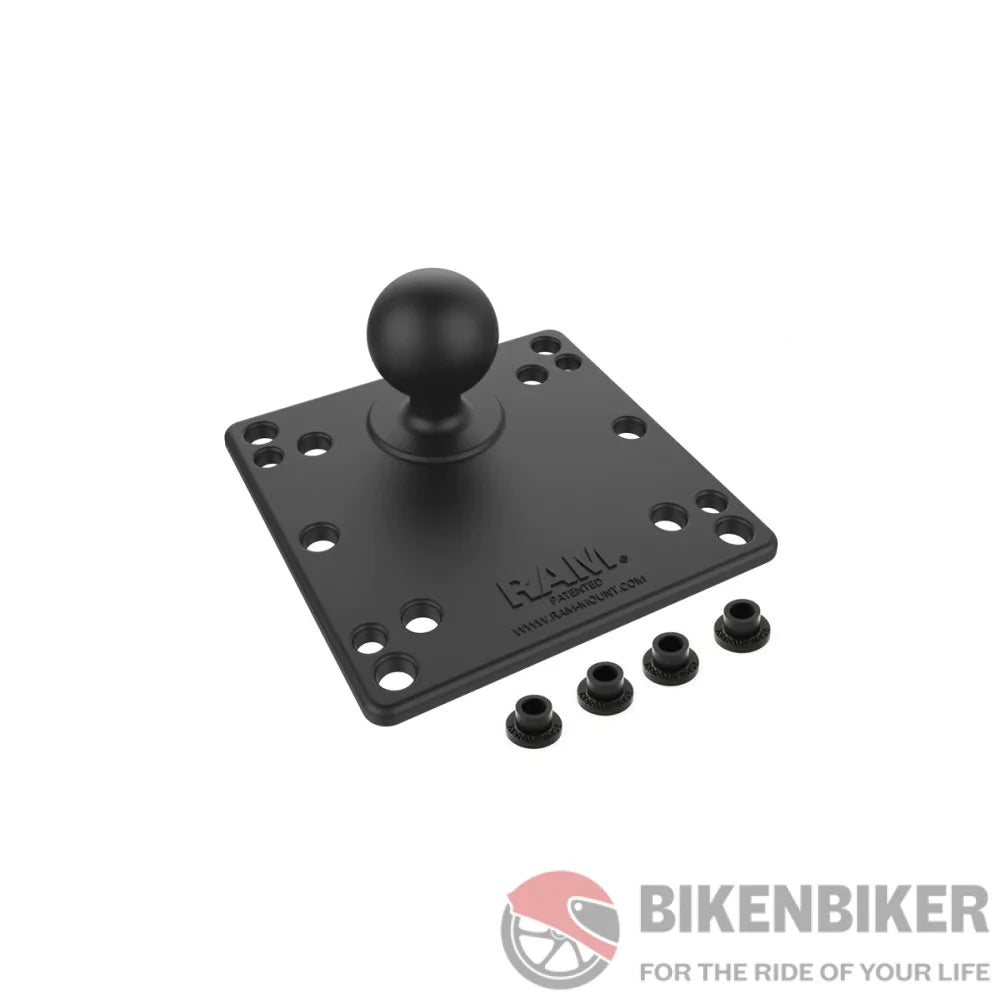

RAM - Ball Mount with 100mm VESA Plate
The RAM-101U-2461 includes a STANDARD period double socket arm, a 2.5" diameter spherical base with the common AMPS hollow pattern, and a 3.625" rectangular plate with the VESA hollow pattern. The VESA plate carries a 75mm X 75mm hollow pattern.
Designed into the mount is a 1.5" diameter patented rubber ball and socket gadget with adjustment factors at each socket ends of the arm. Rubber ball and socket generation permit for nearly limitless adjustment and ideal viewing angles.
PRODUCT DIMENSIONS
- Overall Height: 7.35"
SOCKET-TO-SOCKET LENGTH
- 4.66"
HOLE PATTERN
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter
- See Drawing
PLATE SIZE

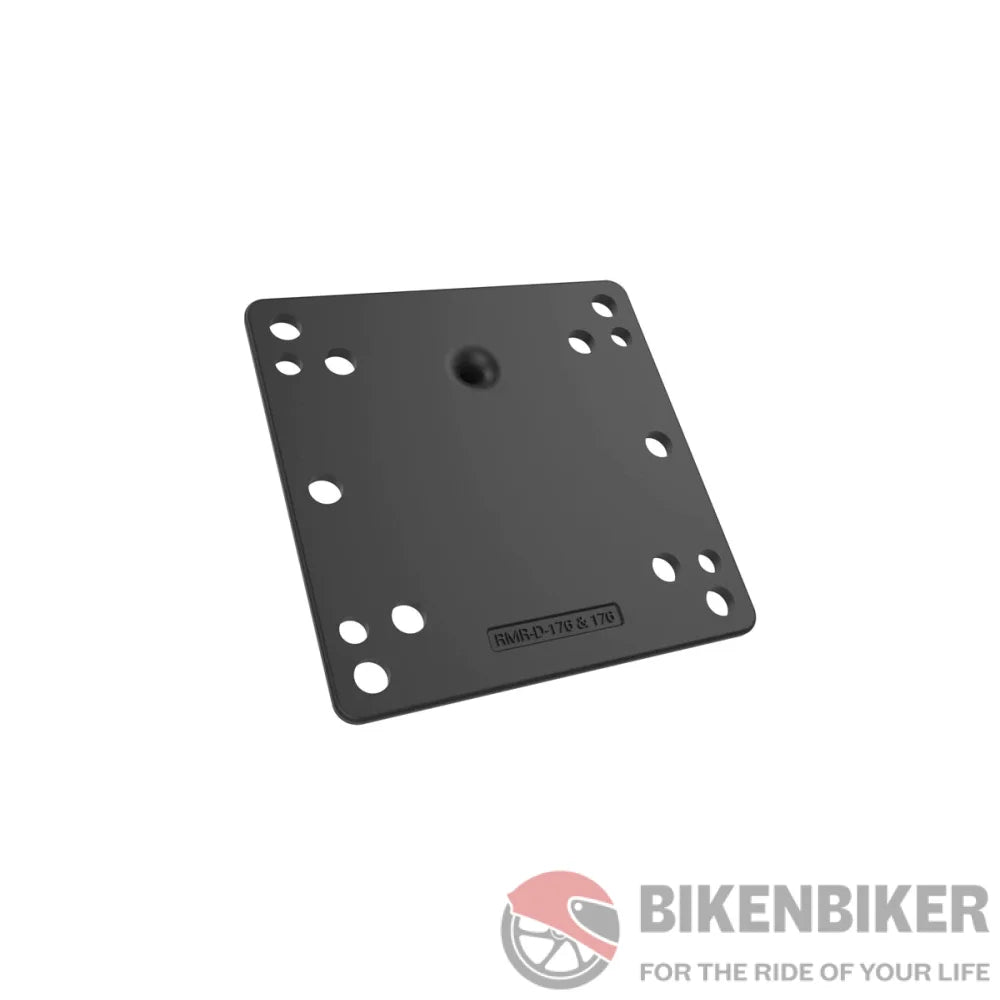

- VESA Plate: 3.625" x 3.625"
- Round Plate: 2.5" Diameter
BALL/SOCKET SIZE
- C Size (1.5")
WEIGHT CAPACITY
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs
MATERIALS
- Marine-grade aluminum
WEIGHT
-
0.6kg
