NANUK side case system for the Ducati Multistrada 1260 (18-)

This system includes two extremely robust NANUK side cases, two PRO side carriers, an adapter kit, a lockset, anti-theft protection and a practical multitool with which the quick-release fasteners of the removable side carrier can be unlocked quickly. In short: with this case system, your machine is good to go for your next long tour. The NANUK cases made from 5 mm thick, UV-resistant plastic protect the case contents from water, dust, and impacts. An integrated valve provides automatic pressure equalization in strong pressure and temperature fluctuations. This allows the waterproof case to be opened easily at any time. The side case offers 35 l of storage and can be attached to the PRO side carrier with two movements. The PRO side carriers by SW-MOTECH with patented QUICK-LOCK quick-release fasteners can be completely removed after a tour in no time, during the ride they provide a secure hold for your cases. With the included anti-theft protection, a quick-release fastener can be replaced on each side and the carrier can be protected against thieves. The NANUK case is then secured to the side carrier with a lockable latch. The case lid also has two matching locks and reinforced optional padlock inserts.

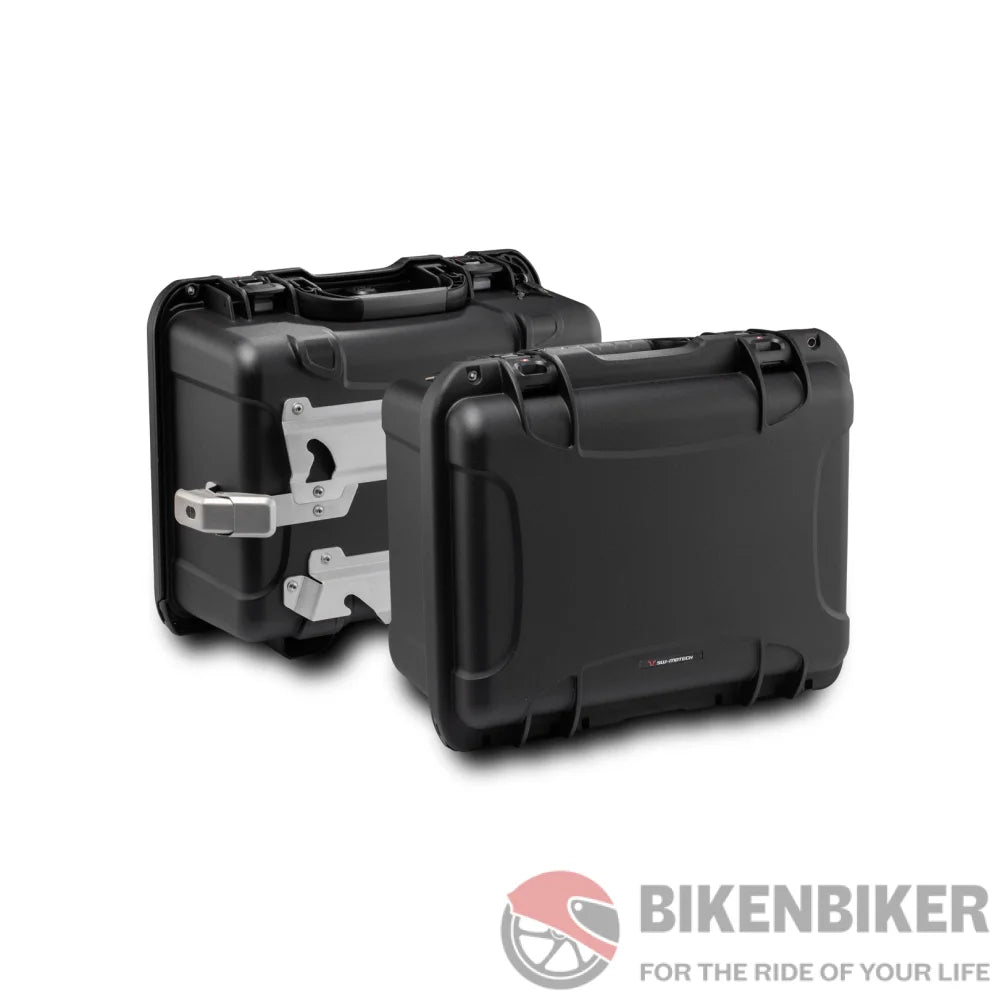

Features of the NANUK side cases

• Robust: Side case made of UV-resistant, extremely shock- and impact-resistant plastic with 5 mm thick walls
• Secure hold on PRO or EVO side carriers by SW-MOTECH: The pre-installed support rail of the case is locked into place on the four mounting bolts of the side carrier and secured with a lockable latch on the carrier
• Anti-theft protection: The NANUK cases have strong, lockable latch buckles and are secured to the side carrier by a lock
• Comfortable: Wide, soft-grip carrying handle with folding mechanism, side hinged lid with lid limiter at 110°
• Waterproof: A special seal in the lid protects the case contents from penetrating water or dust
• An integrated valve makes it possible to easily open the lid even in strong pressure and temperature fluctuations.
• Included in delivery are one key and a replacement key per NANUK case
• A lock set is included to secure the NANUK case on the side carrier.
• Inner dimensions: 452 mm x 409 mm x 239 mm
• Outer dimensions: 503 mm x 409 mm x 254 mm

• Material: Plastic / Stainless steel components
• Color: Black
• Weight: 4.8 kg

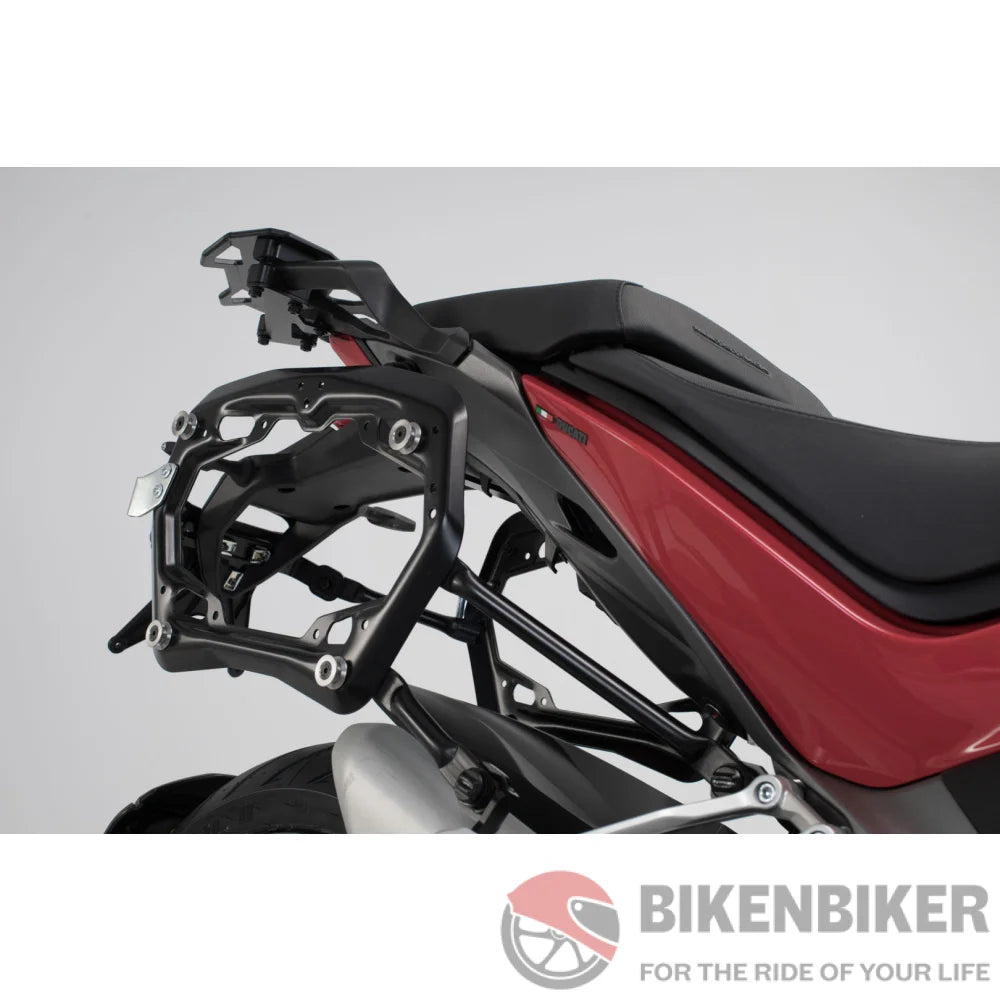

Features of the PRO side carriers

• Extremely durable due to its optimized shape and 2.5 mm thick steel
• Perfect fit, designed to fit close to the bike
• Fully removable with newly developed, even more, robust quick-release fasteners
• Optional anti-theft protection included in delivery
• For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
• Numerous functional bores, compatible with the RotopaX system among others
• Simple assembly at the original mounting points
• Powerful corrosion protection thanks to powder coating

• Material: Steel
• Color: Black
• Surface: Powder coated

Features of the lock set

• 2 matching locks with 2 identical keys
• For securing the NANUK side cases to the side carriers

Features of the anti-theft protection for PRO side carrier

• Anti-theft protection for PRO side carrier
• With the anti-theft protection, any two quick release fasteners can be replaced
• Set for right and left PRO side carrier, consisting of 2 matching locks and 2 identical keys

Features of the multitool key chain

• Multitool as practical key chain
• Quick-release fastener-opener for PRO side carrier
• Hex key (14 mm) - ideal for many motorcycle mirrors
• Hex keys in four additional sizes (8, 10, 12, 13 mm)
• Bottle opener
• Key chain eyelet
• With laser-etched SW-MOTECH logo

• Material: Stainless steel
• Color: Silver
• Surface: Brushed

Included in delivery

• 2 NANUK side cases incl. 2 x 2 keys
• 2 PRO side carriers for Ducati Multistrada 1260 (18-)
• 1 adapter kit
• 1 lock set
• 1 anti-theft protection for PRO side carrier
• 1 multitool key chain
• Mounting material
• Mounting instructions

Brand - SW-Motech, Germany

Part No. - KFT.22.892.40000/B
