Extension Bracket Tank Guard (ULTIMATE) For BMW R1300GSA 2024 Onwards-Wunderlich-13216-002

THE WUNDERLICH ULTIMATE PLUS SUPPLEMENTARY BARS COMPLEMENT THE ULTIMATE TANK PROTECTION BAR, PROVIDING A SEAMLESSLY INTEGRATED EXTRA LAYER OF PROTECTION FOR THE FLANKS OF THE BMW R 1300 GS ADVENTURE.

Function and Product Features

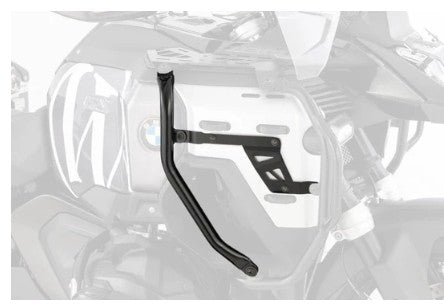

• These ULTIMATE plus supplementary bars complement the ULTIMATE tank protection bar #13215-002and provide additional protection for the Adventure's flanks
• They act as a coupling element between the rack base and the lower tube support, ensuring added stiffness in the tube network
• The forces and moments are distributed across two additional mounting points on both the right and left sides
• The shape of the supplementary bars further aids in the elastic absorption of peak stress loads
• This additional protection increases passive safety and reduces the risk to the rider's legs in the event of a fall
• Perfect fit
• Integrated solution from a single mould
• Simple and quick assembly

Note

• The side bracket included with the supplementary bar replaces the side bracket of the tank protection bar. It connects the tank protection bar with the supplementary bar, serving as a shared side bracket for both.

Technical Data

• Material
  • Protection Bars
    • Precision steel tubing with high tensile strength and elongation at break, carefully handcrafted, radii precisely formed using CNC tube bending machines, and then cleanly welded. Carefully finished and powder-coated in black.
• Material
  • Side Bracket

Made from aluminium, carefully finished

• • • Powder-coated in black

• Dimensions
  • Tube diameter: 25 millimetres

Your Wunderlich Advantages

• Wunderlich premium product.
• Small series. Handcrafted.
• Wunderlich design. Functional and integrated.

THE ULTIMATE PLUS SUPPLEMENTARY BARS FIT PERFECTLY AND PROVIDE AN EXTRA LAYER OF PASSIVE SAFETY

Our supplementary bars made of precision steel tubing with a diameter of 25 millimetres support, reinforce, and perfect the protective effect of the ULTIMATE tank protection bar.

Brand - Wunderlich
