T3 Switchback Signal Pods | Rear - Denali

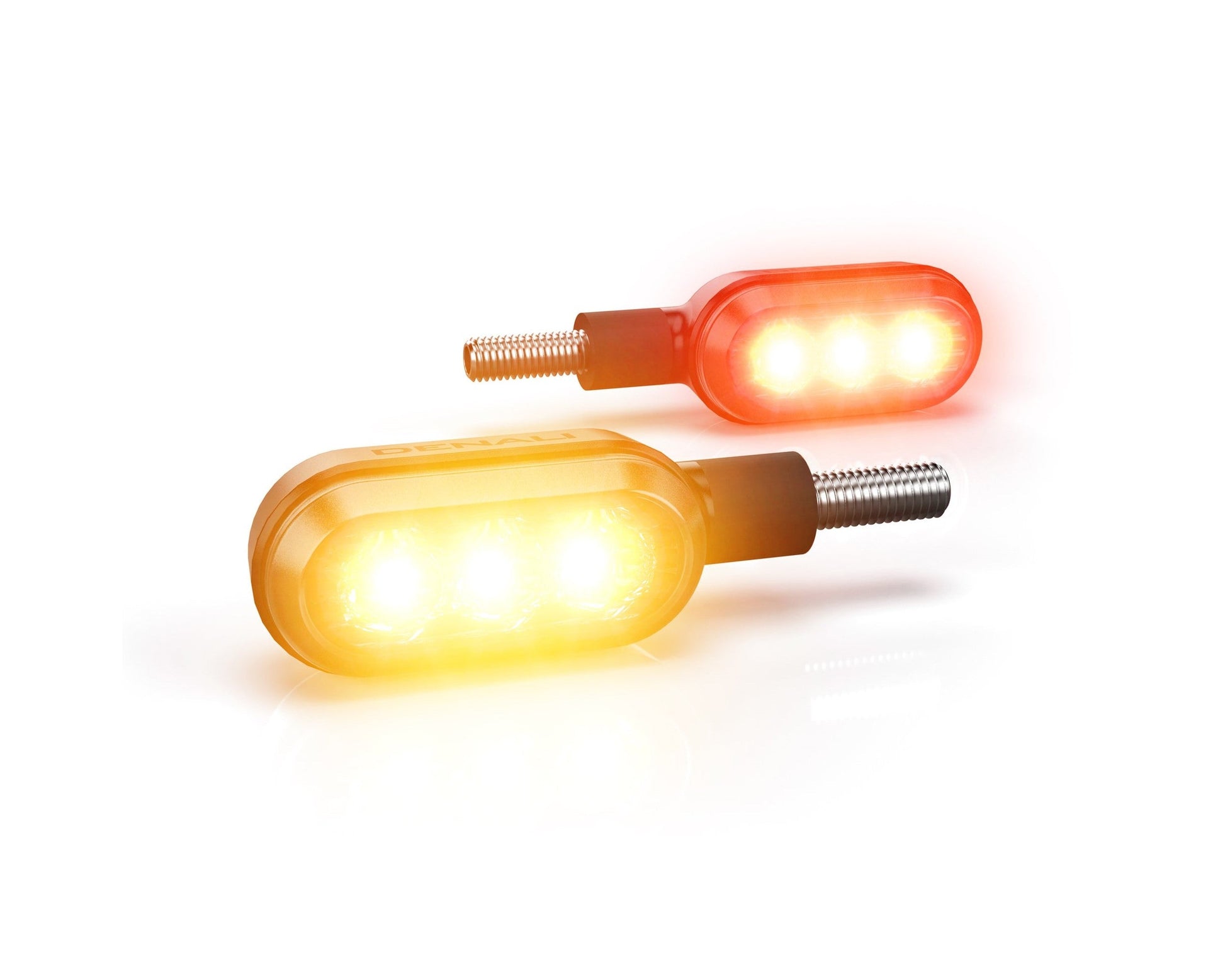

The T3 is a unique and innovative approach to the common turn signal, blending white visibility lighting, red brake lighting, and amber turn signal lighting into one compact housing. The rear T3 signal pods feature super bright red LEDs for run and brake functionality that also switch to amber when your turn signal is activated, while the front T3 turn signals feature super bright white running lights that switch to amber when your turn signal is activated. Unlike other switchback turn signals, the T3s feature two separate rows of high-power single-color LEDs as opposed to weaker bi-color LEDs. The result is a shockingly bright light pod that rivals the intensity of 10 watt LED driving lights.

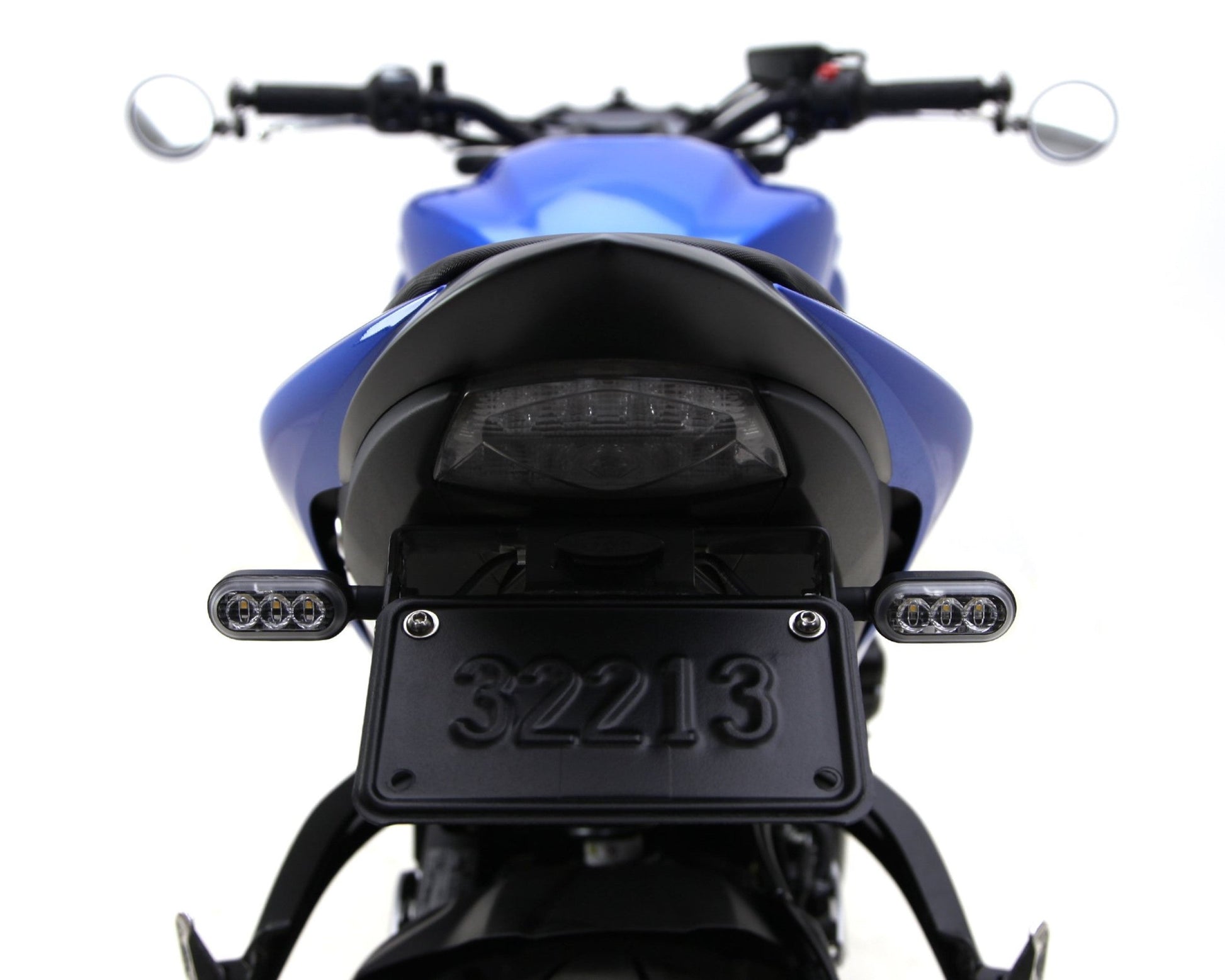

This M8 stud version of Denali’s rear T3 signal pod is designed to replace your factory turn signals. The T3s amber signal light is far brighter than stock but much smaller in size. The additional red brake light circuit provides maximum visibility without having to add other auxiliary brake lights. The M8 stud version of Denali’s front T3 signal pod can be found here.

The sleek low-profile housing coupled with high-power LEDs make the T3 the brightest and most versatile switchback turn signal on the market.

Highlights

Switchback Functionality: Red Run/Brake Light & Amber Turn Signal
Dual Circuit Brake Light: 50% Low, 100% High
180 degree viewing angle
Six high power LEDs (per pod)
Low-profile design
Easy connection to vehicle brake and turn circuit

Product Specifications

Size per Pod: 74mm x 29mm x 13mm
Total Power Draw: 0.02A Run, 0.21A brake, 0.52A Turn Signal
Input Voltage: 12V DC
Raw Lumens: 870
Waterproof: IP67
Weight: 0.036 kgs

What’s in the box?

Rear M8 Turn Signals x 2
Wiring pigtails with waterproof connectors x 2
M8 Serrated Flange Locknut x 2
Posi-Tap Connector x 4
Posi-Lock Connector x 4
Installation instructions

Brand - Denali

Part No. - DNL.T3.10100
