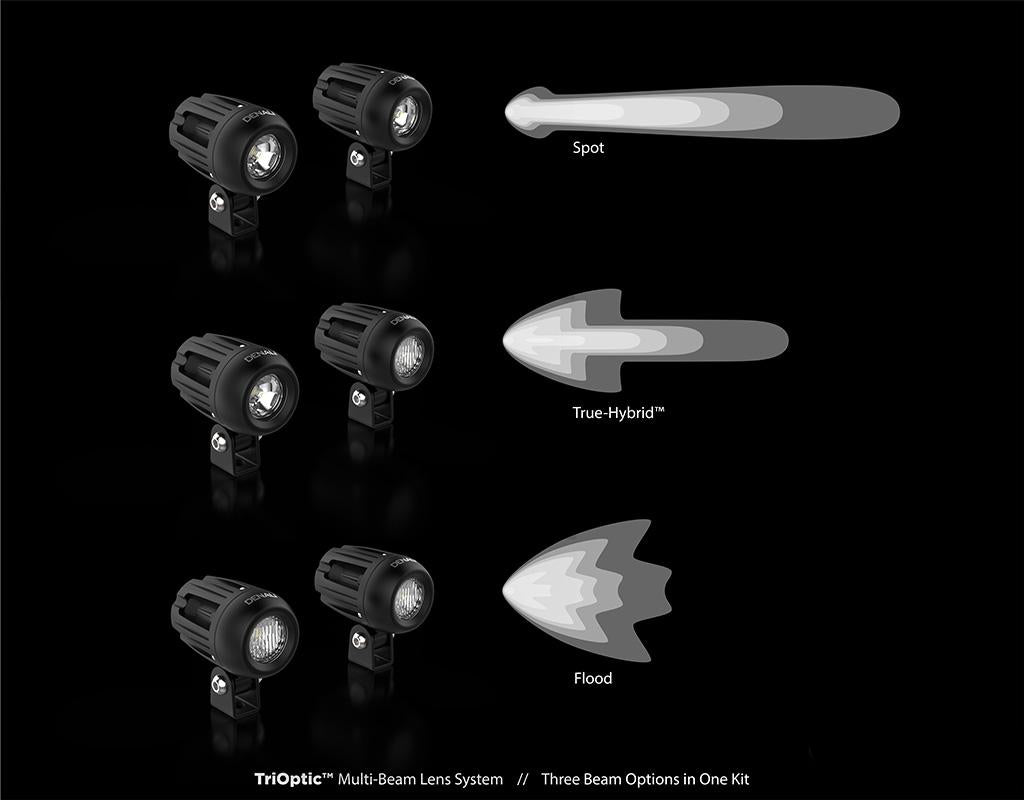

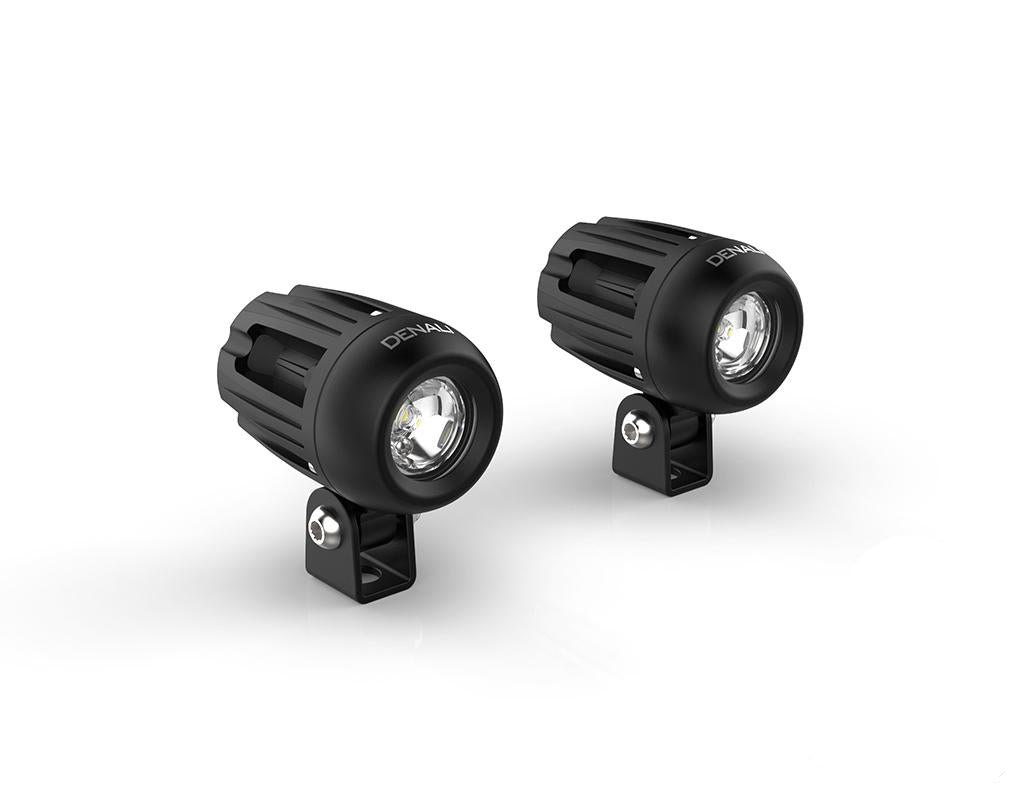

DENALI DM v2.0 LED TriOptic™ LED light kit

The DENALI DM 2.0 LED TriOptic™ LED light kit with DataDim technology maximizes visibility in an extremely durable, efficient, compact yet very powerful package. The DM is primarily designed for conspicuity, so you’ll stand out from road clutter and be seen by other drivers, but it also provides a useful increase in illumination over your motorcycle’s stock headlight. Fitted into rugged aluminum housings only 1.7in in diameter and 2.4in long are powerful 10-watt Cree LEDs, providing 395ft of useful, confidence inspiring light. The DM’s compact shape allows it to be fitted anywhere your imagination takes it, although it’s really optimized for fender mounting.

Specifications:

• LEDs 10 watt Cree XPL HI (per lamp)
• Power Draw: 1.6 amps (total)

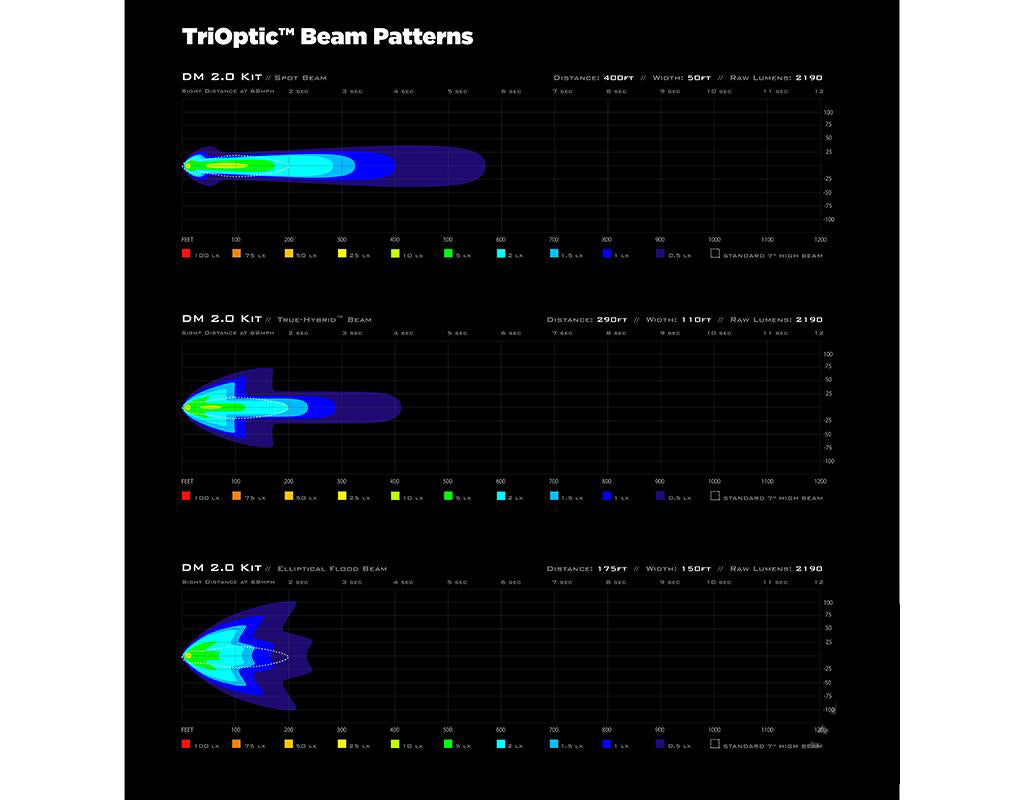

• Beam Distance (spot): 395ft
• Beam Width (spot): 55ft
• Raw Lumens: 2190
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes
• Operating Voltage: 12v
• Pod Size: 1.7in diameter x 2.4in deep

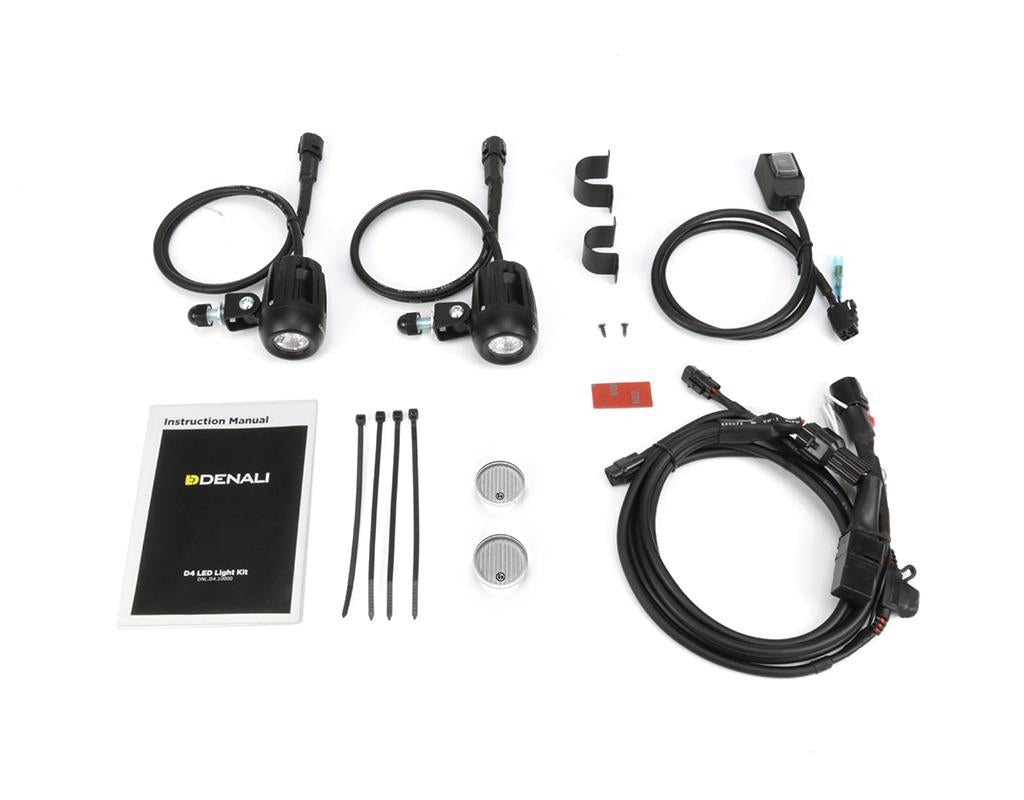

DM Kit Contents:

• (2) LED light pods
• (2) Spot lenses (pre-installed)
• (2) E-Mark approved elliptical flood lenses
• (1) HotSwap™ single intensity wiring harness
• (1) DrySeal™ waterproof illuminated switch
• (1) 7/8in handlebar switch mount
• (1) 1in handlebar switch mount
• (2) Hinge mounts with M8 stainless steel hardware
• (4) Zip ties & (1) adhesive mounting square

DENALI 2.0 Installation and Operation

Brand - Denali
