Baja Designs

LED Light Bar XL Linkable (3150Lu/pc) - Baja Design

74-0001

M.R.P. Rs. 74,999.00 inclusive of all taxes
M.R.P. Rs. 74,999.00 inclusive of all taxes
Sale Contact Us to Order
Tax included.
Set of

Out of stock

View full details

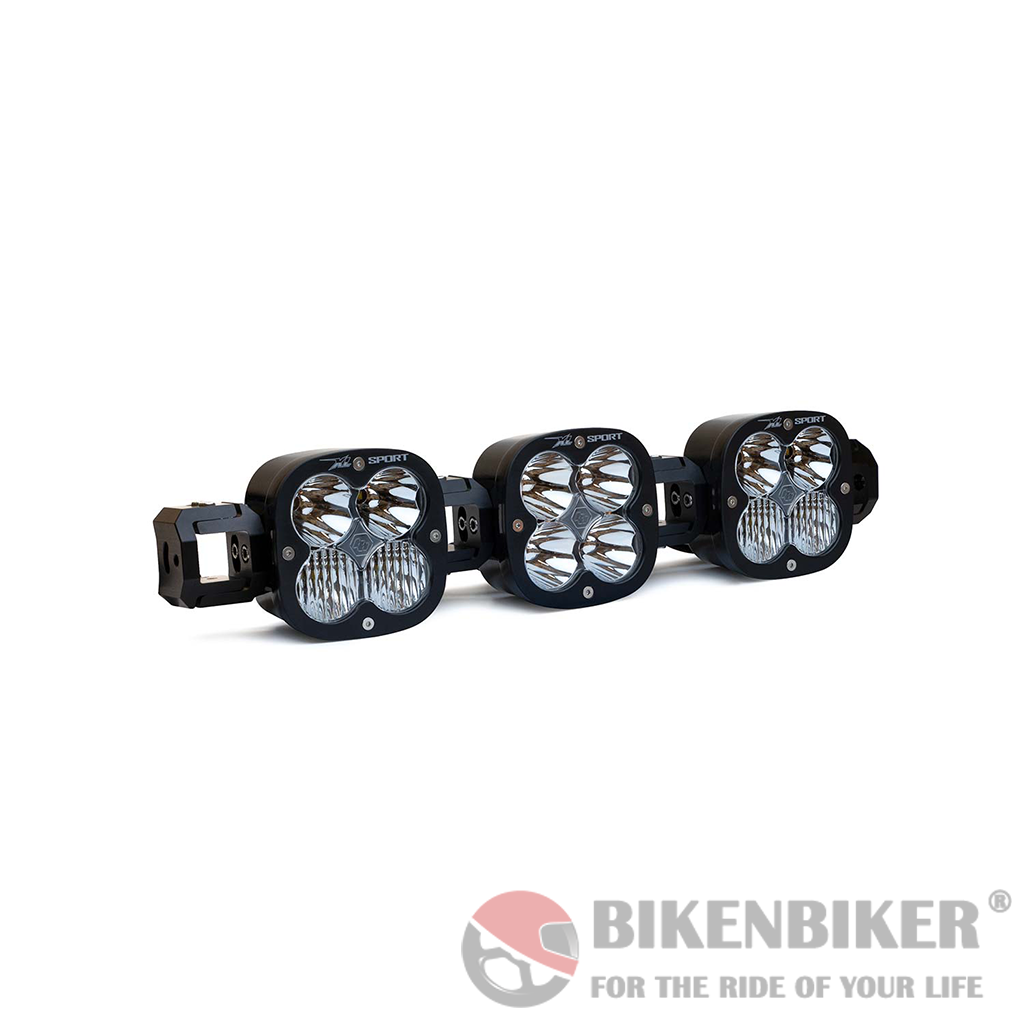

LED Light Bar XL Linkable (3150Lu/pc)

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customisable for their needs.

This kit includes

NET QUANTITY AS PER SET

  • XL SPORTS AS PER SET CHOSEN

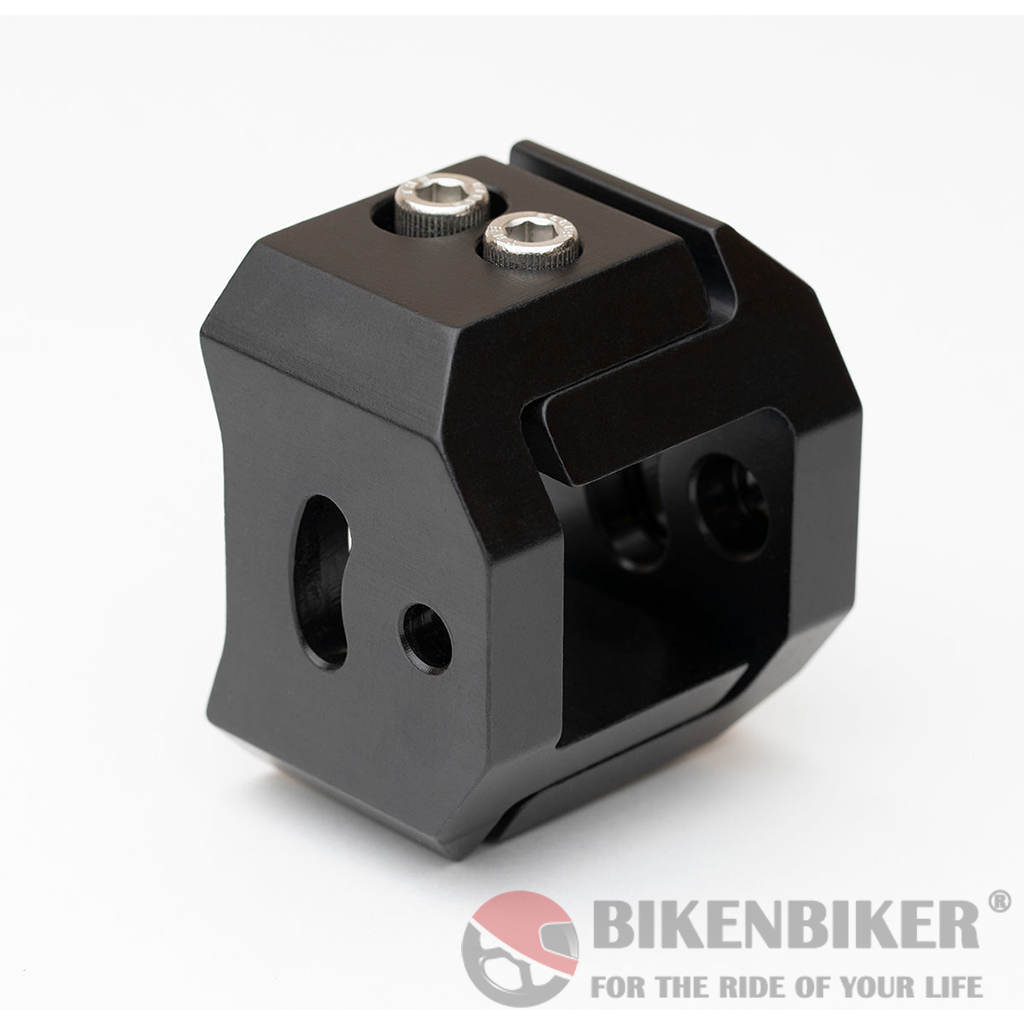

  • LINKS  AS PER SET CHOSEN

  • ROCK GUARDS  AS PER SET CHOSEN

  • 1N WIRING ( ON/OFF SWITCH , 9 FT LENGTH)

Note: Kit does not include mounting brackets.

This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle.

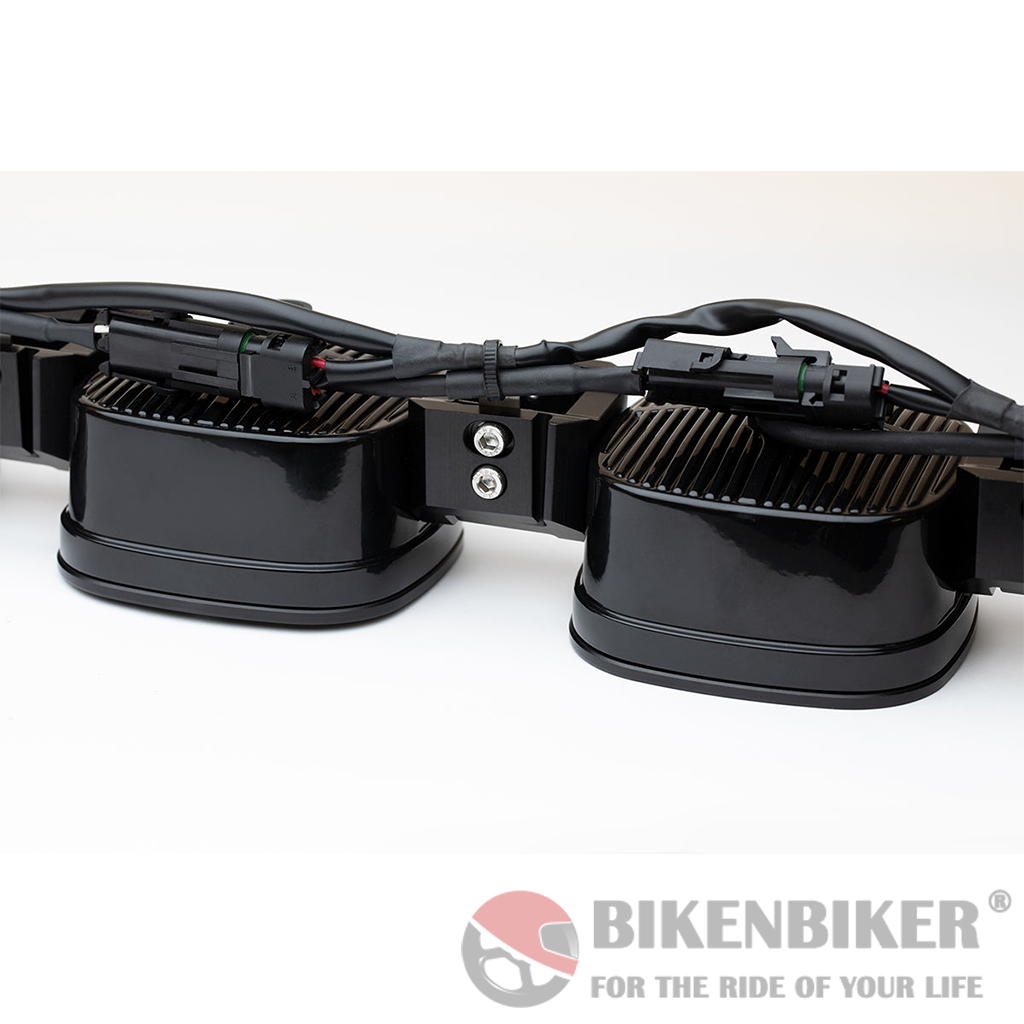

 The wiring comes fully crimped and trimmed, allowing for easy install and the ability to add links down the road.

If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!




uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color		 Specifications for each Light :
Lumens: 3,150 Utilizing 4 LEDs each
Wattage/Amps: 26W / 2A each
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)



Adjustability:

Patterns:

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Brand - Baja Design , USA

Part No. - BD 74-000x
