AUX LED Wirings - Baja Designs
SKU:BD 640117
Out of stock
Share
AUX LED Wirings - Baja Designs
This wiring harness are listed for several models here. Please feel to confirm and ask us questions if you are not sure. We are here to help!
Various wirings and their description below:-

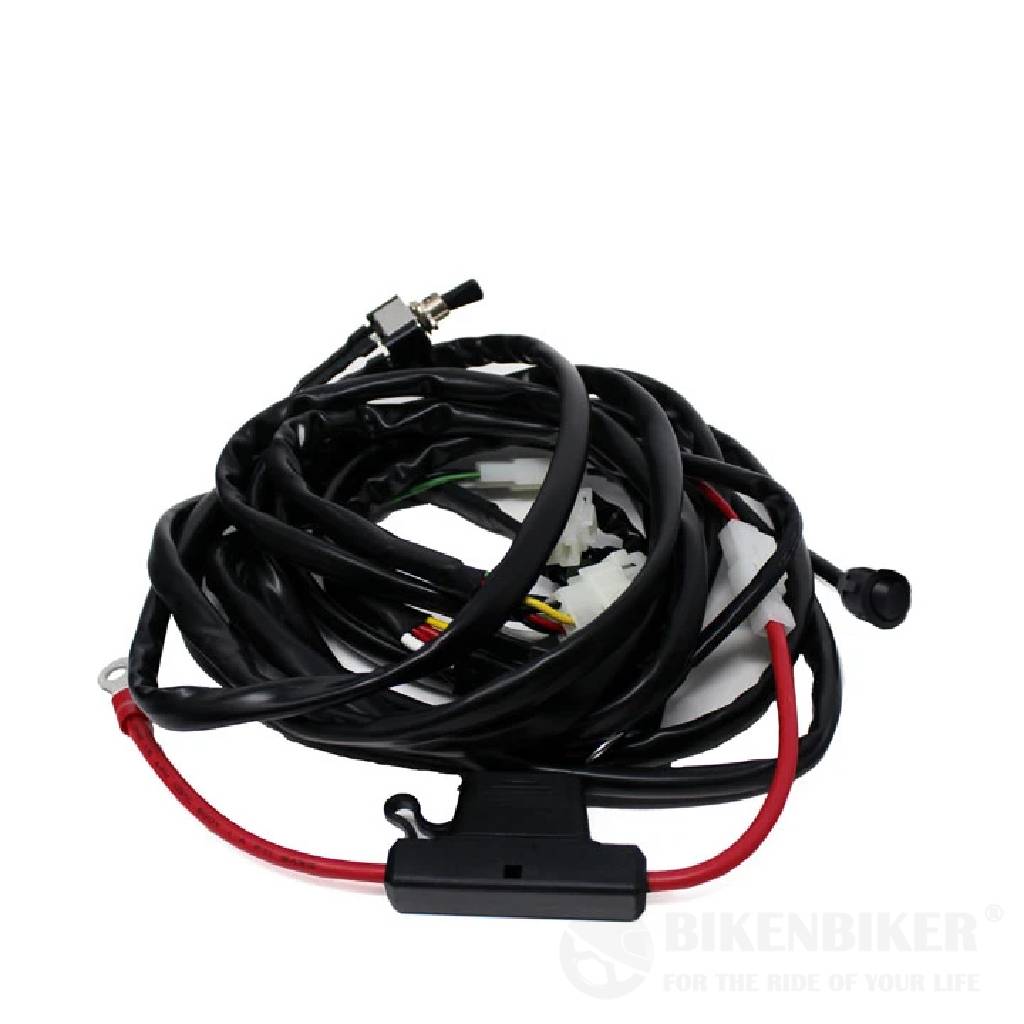

OFF ROAD ADV WITH SWITCH & TAIL LEAD
This wiring harness has been designed for a universal application. The requirements for this harness are that it needs a battery to run off of and the bike MUST have enough DC power in order to run the light you are trying to purchase. You can check your bikes output by both referencing our stator reference chart as well as calling in to one of our trained techs. This harness comes equipped with an on/off handlebar switch, and optional taillight lead.
SQUADRON / S2 - RELAY + SWITCH (2 LIGHTS/150W)
This universal 12v wiring harness is capable of powering up to 12 amps and has been specifically designed for our Fuego, PreRunner, LaPaz, Squadron and SII.
It includes an On/Off toggle button to provide power to the lights. This harness comes ready to power up to two (2) Baja Designs LED/HID lights listed above.

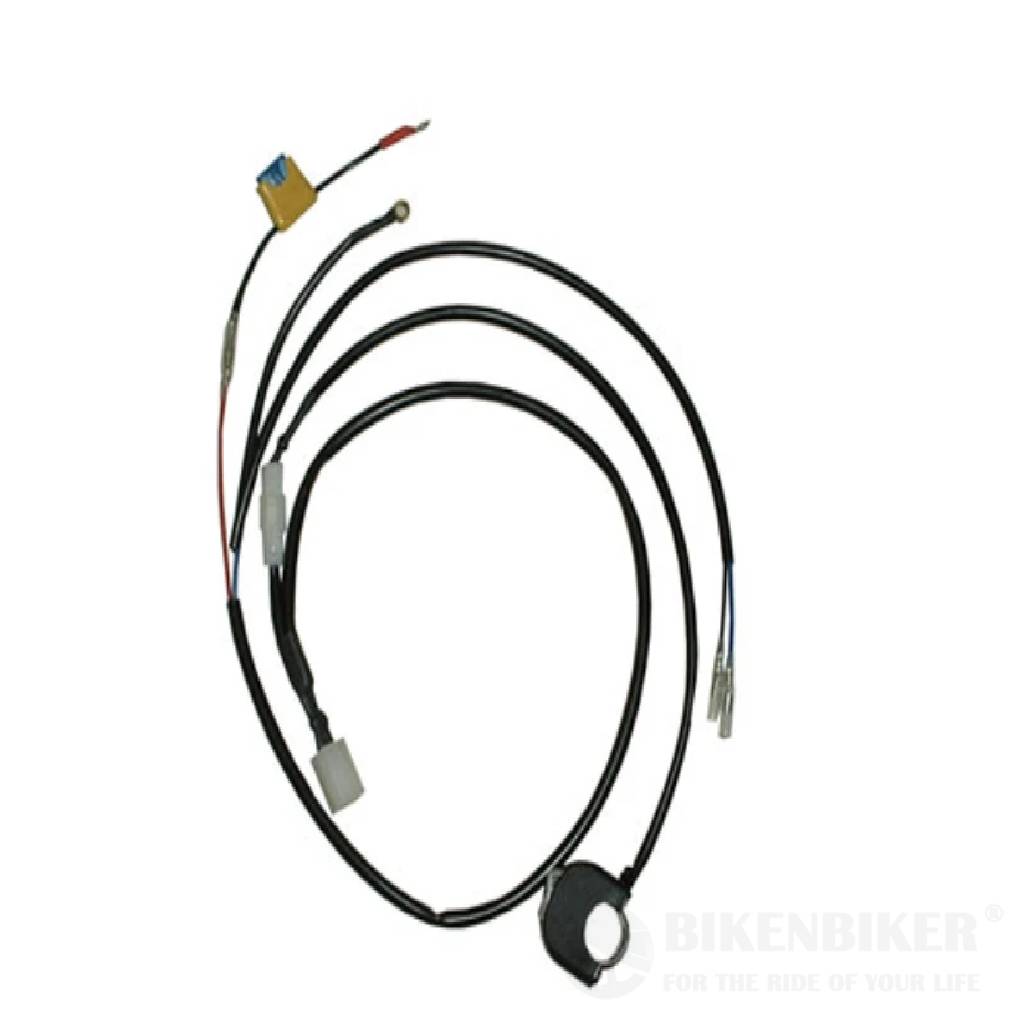

SQUADRON / S2 - W/O RELAY + STD RED SWITCH (2 SQUADRON LIGHTS)
This universal 12v wiring harness is capable of powering up to 12 amps and comes standard in all S2 and Squadron series. No relays. Usually red and black wiring
It includes an On/Off toggle button to provide power to the lights. This harness comes ready to power up to two (2) Baja Designs LED/HID lights listed above.

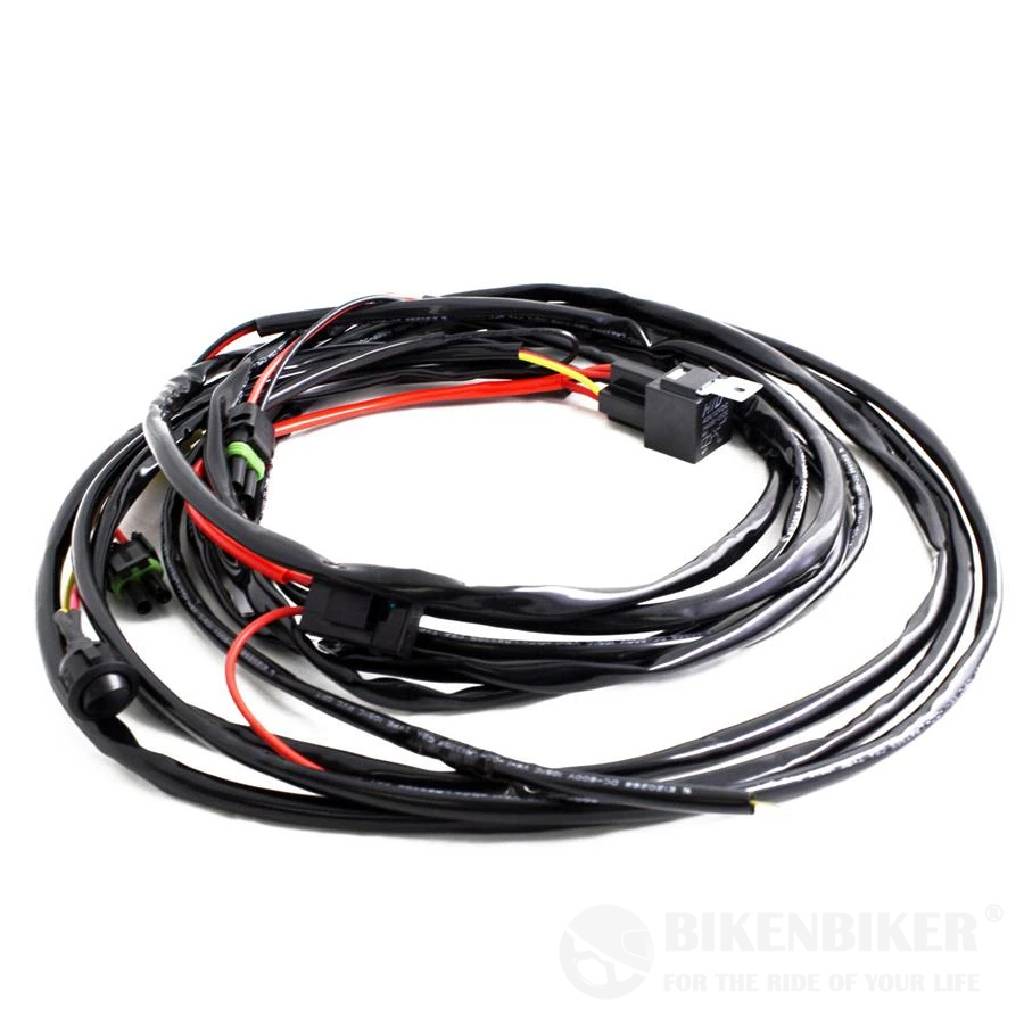

S8/IR SERIES - (2 BAR MAX.)
This harness takes all the guess work out of installation and is incredibly high quality suited for race use!
Put your dimmer/backlit mode to use!
Features:
- Includes On/Off Toggle switch for primary light bar function, as well as a separate On/Off switch for secondary (Amber Backlight/ Laser) function.
- Heavy duty wire gauge that can handle any size bar
- Complete with battery ring terminals, relay, sheathing, fuse
- 100" wire length between battery ring terminals and weather-pack for bumper or roof mounting
Application:
LP9/LP6 PRO - AUTO (2 LIGHTS)
The Baja Designs LP9 / LP6 Pro Harness Includes:
- Wiring harness with plug and play Deutsch style connectors
- Built in splitter to power two LP9 or LP6 Lights
- Large automotive style ring terminals
- 3-position, 30 Amp DC Rated, DPDT, On-Off-On Switch to operate high and low beam independently
- Extra wire lead with splice connector to operate amber daytime running light (DRL)
- 20A/40A Relay & 30 amp inline fuse
- 12 foot length for battery to instrument cluster
- 15 foot length for instrument cluster to light mounting location
This harness is all you will need to in order to get full versatility and functionality from your LP9 or LP6 lights!
XL/ONX6 SERIES - (2 LIGHTS/325W)
Complete harness for Baja Designs XL (Pro & Sport) and OnX6+ LED Lights.
This harness takes all the guess work out of installation and is incredibly high quality suited for race use!
This harness allows you to use the high beam or toggle switch to turn on the LED light.
Features:
- Includes Toggle switch for On/Off and toggle button for dim mode.
- Heavy duty wire gauge.
- Complete with battery ring terminals, relay, sheathing, fuse.
- 100" wire length between battery ring terminals and weather pack for bumper or roof mounting.
Includes:
- (1) XL (Pro & Sport) / OnX6+ Wire Harness w/Mode-2 lights max 50"OnX6+ (64-0119)
- (1) OnX6/XL (Pro & Sport) Wiring Harness Splitter - adds 1 light (61-3608)
Brand - BAJA Designs , USA
Part number - BD 640117
Country of Origin:
Generic Name:
Quantity:
Country of Import:
Warranty:
Importer Address:
- Description
- Other Details
