Aux LED 6500 Lumens (PCS) - LP9 Sports
SKU:BD 35 0003
Out of stock
Share

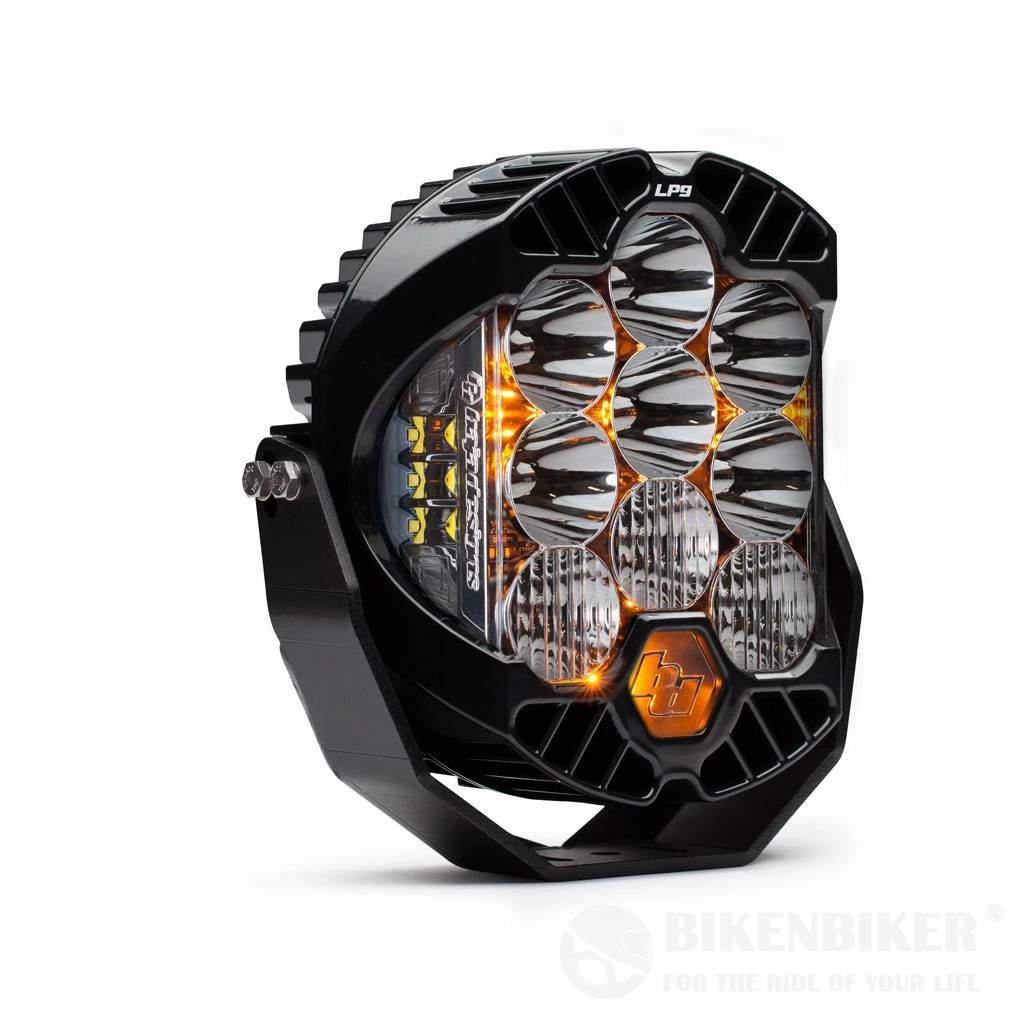

Aux LED 6500 Lumens (PCS) - LP9 Sports
LP9 Sport is perfect for enthusiasts that want the look and features of our successful LP9, but with a little less output intensity and price. The Sport model still includes all of the technology that makes the LP9 series so popular, from Direct Ducted Cooling - that keeps your light cool under stress - to the Integrated Peripheral Technology (IPT), which produces an incredible 200° spread of usable light.
The LP9 Sport utilizes 9 forward projecting LEDS to produce 6,500 Lumens at 61 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 2,550 lumens at 24 watts.
The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
As with all of our LED offerings, this light features uService technology - allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
|
uService® – Replaceable Lenses And Optics ClearView® – All The Light, Right Where You Need It. MoistureBlock™ – Waterproof, Rain Proof, Submersible CopperDrive® – Only LED Driven At 100% 5000K Daylight – Less Driver Fatigue, Natural Color |
Specifications: IPT Lumens: 2,550 Utilizing 6 LEDs |
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
.
The Baja Designs LP9 Pro Harness Includes:
- Wiring harness with plug and play Deutsch style connectors
- Built in splitter to power two LP9 Lights
- Large automotive style ring terminals
- 3-position, 30amp DC Rated, DPDT, On-Off-On Switch to operate high and low beam independently
- Extra wire lead with splice connector to operate amber daytime running light (DRL)
- 20A/40A Relay & 30 amp inline fuse
- 12 foot length for battery to instrument cluster
- 15 foot length for instrument cluster to light mounting location
This harness is all you will need to in order to get full versatility and functionality from your LP9 lights!
Brand- BAJA Designs, USA

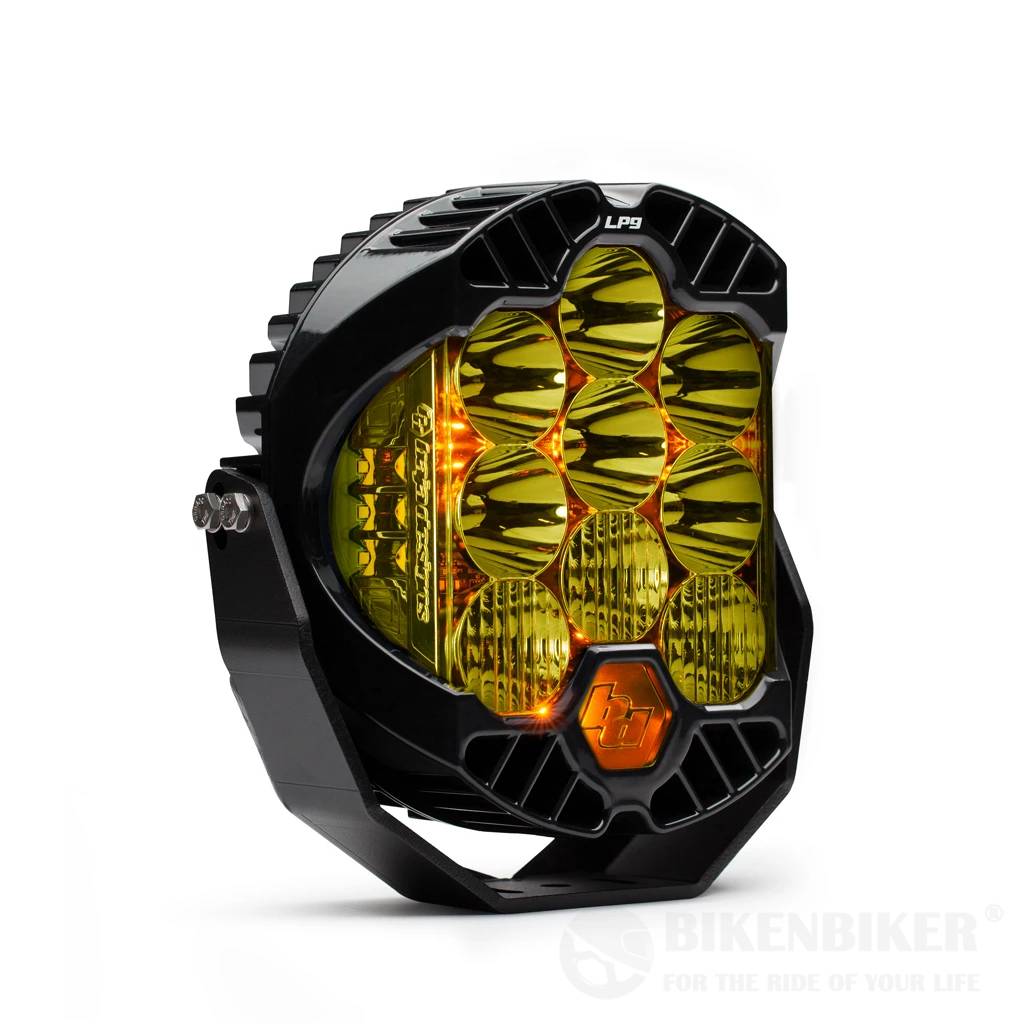

Part number - Clear - 35 0003, Amber - 35-0013
Country of Origin:
Generic Name:
Quantity:
Country of Import:
Warranty:
Importer Address:
